3-Axis Platform Lifts

Key Advantages of 3-Axis Platform Lifts

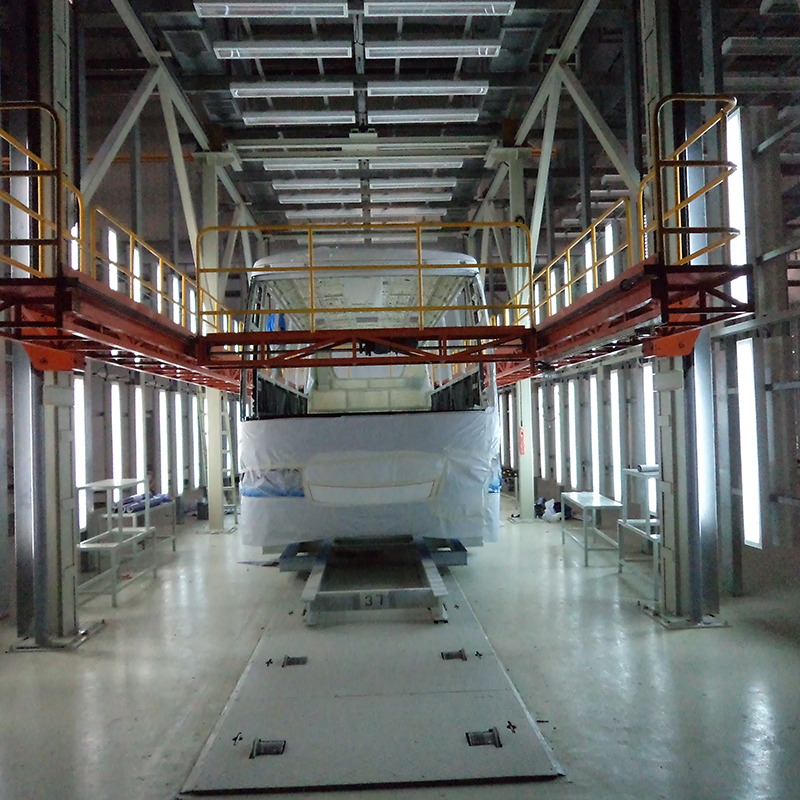

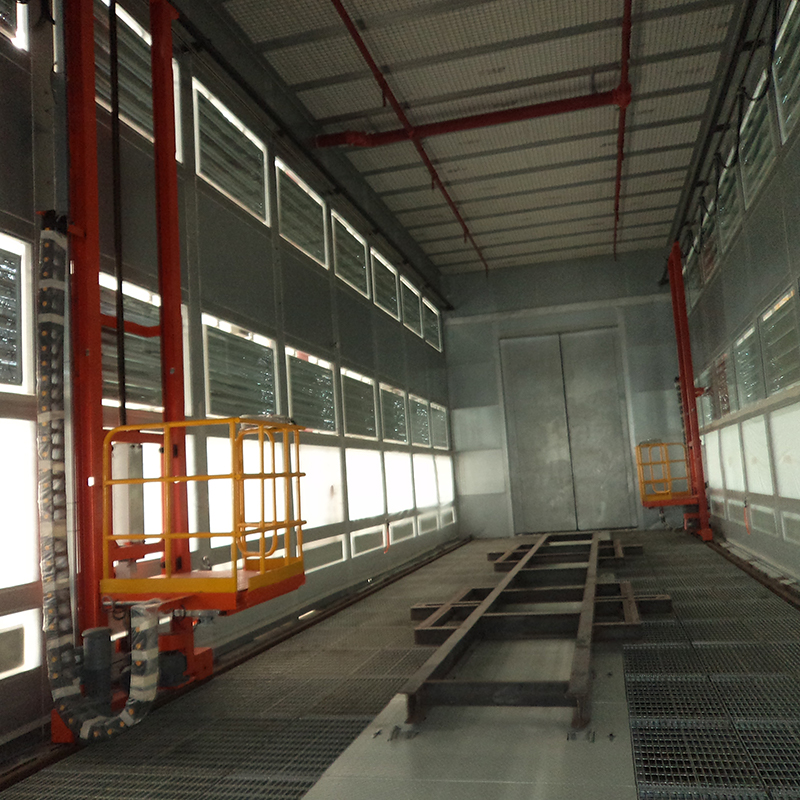

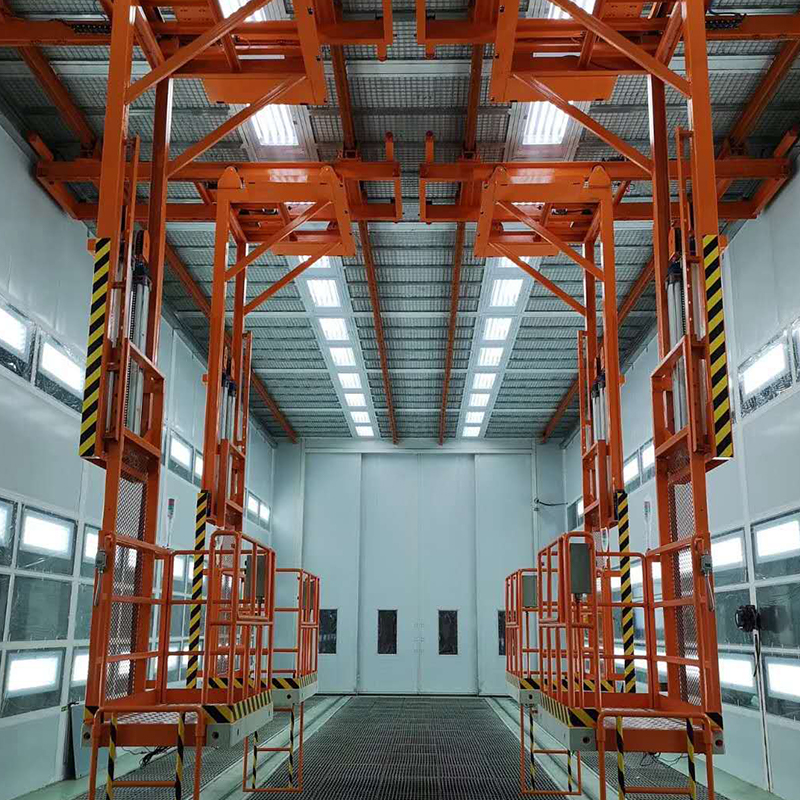

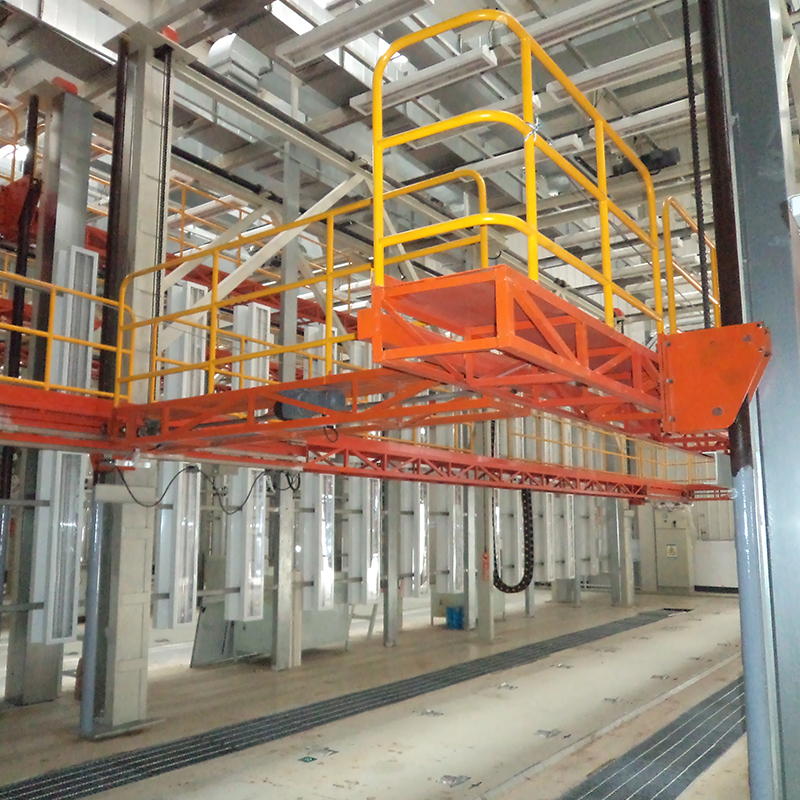

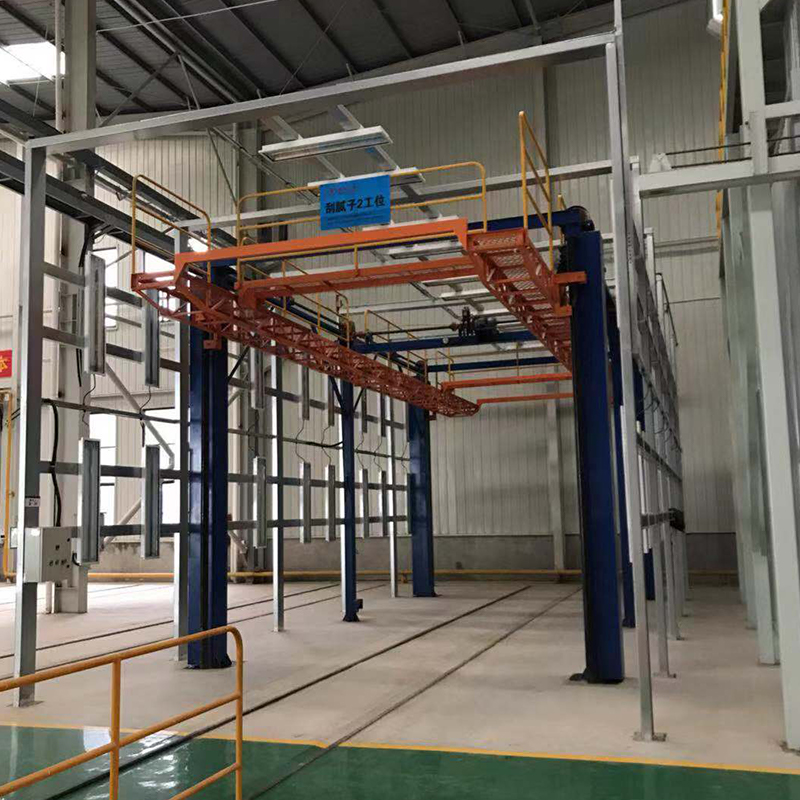

3-Axis Platform Lifts give operators the ability to position a workpiece or work platform along three directions of movement, typically vertical rise combined with two horizontal travel axes, so that spraying, inspection, or finishing tasks can reach every surface of large or irregularly shaped parts without repeatedly repositioning the object itself. This is especially useful in workshops handling large-sized parts, since manually moving heavy components to reach different angles is both time-consuming and physically demanding. By allowing the platform to move rather than the part, a 3-axis lift system can reduce part handling time considerably while lowering the risk of surface damage caused by repeated lifting or repositioning of heavy workpieces.

The added axis of movement also improves ergonomics for operators performing manual finishing or inspection tasks, since the platform can be raised or shifted to bring the work area to a comfortable working height rather than requiring the operator to bend, climb, or stretch to reach different sections of a part.

How 3-Axis Platform Lifts Operate

A typical 3-axis platform lift system combines the following functional elements:

1. Vertical lift mechanism: raises or lowers the platform to align with different sections of the workpiece;
2. Horizontal traverse system: moves the platform along the length or width of the work area;
3. Control panel: allows the operator to adjust position along each axis, often with programmable presets for repeat tasks;
4. Safety interlocks: prevent movement beyond safe operating limits and protect operators during platform adjustment.

Because the three axes can be combined, an operator can reach a specific point on a large part directly rather than moving through a fixed sequence of positions, which shortens access time for tasks such as touch-up spraying, sanding, or detailed inspection.

Integrating Platform Lifts into a Coating Production Line

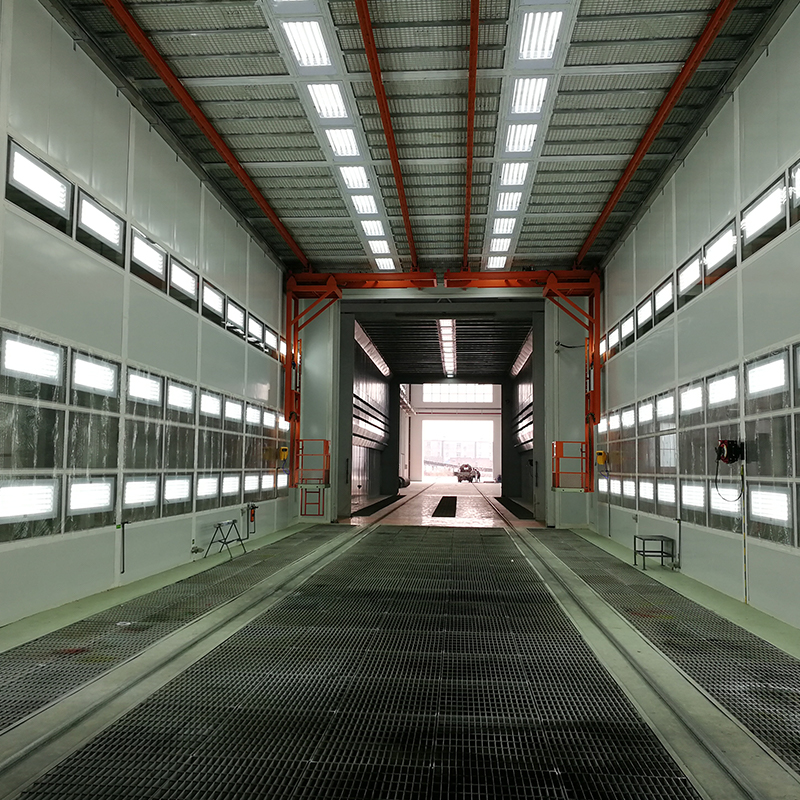

Platform lift systems are often positioned alongside spray booths, grinding rooms, or inspection stations to give operators consistent, safe access to large parts throughout the production process. Jiangsu Yue Ze Environmental Protection Equipment Co., Ltd., located in Yancheng, Jiangsu, China, spans 35,000 square meters with a registered capital of 58 million yuan and brings more than 40 years of experience in large-sized parts grinding rooms, paint and bake booths, and related coating production line equipment. This engineering background supports the design of platform lift systems configured to match specific workpiece dimensions and workshop layouts, helping ensure the lift integrates smoothly with surrounding equipment on the production line.

Platform Lift Configuration Reference by Task

Frequently Asked Questions

Q1: What types of workpieces benefit most from 3-Axis Platform Lifts?

Large or irregularly shaped parts that require access from multiple angles, such as vehicle bodies, large castings, or fabricated structures, benefit most from the flexibility a three-axis lift system provides.

Q2: How do platform lifts improve safety compared with manual positioning methods?

By moving the platform instead of manually lifting or repositioning heavy parts, operators avoid repetitive strain and reduce the risk of dropped or damaged workpieces during handling.

Q3: Can 3-Axis Platform Lifts be customized for existing production lines?

Yes. Lift dimensions, travel range, and load capacity can be tailored to fit existing workshop layouts and workpiece specifications. Jiangsu Yue Ze Environmental Protection Equipment Co., Ltd. offers customized configurations based on decades of experience designing large-part handling equipment.
