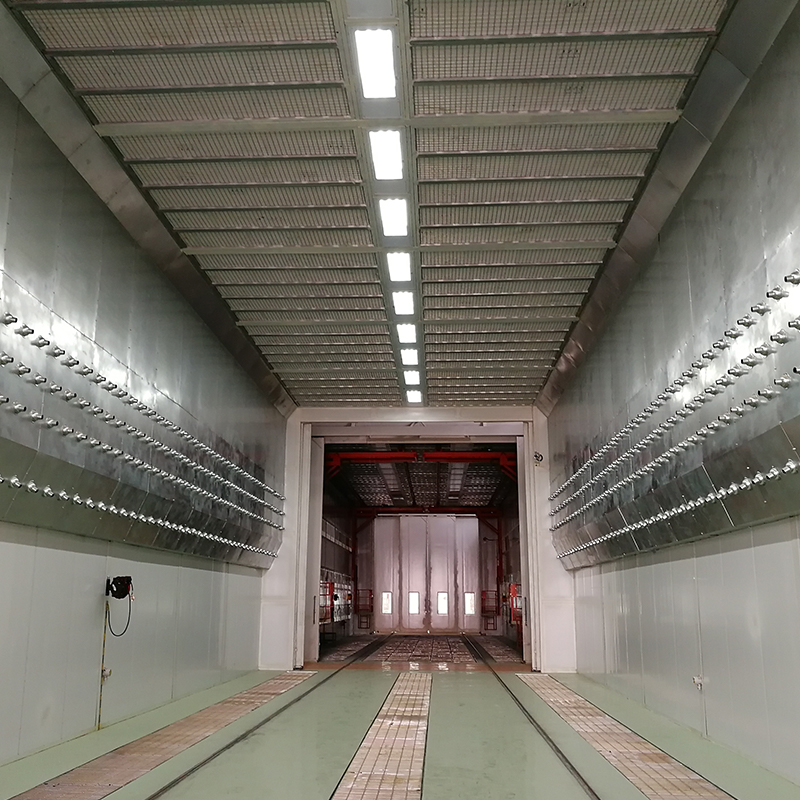

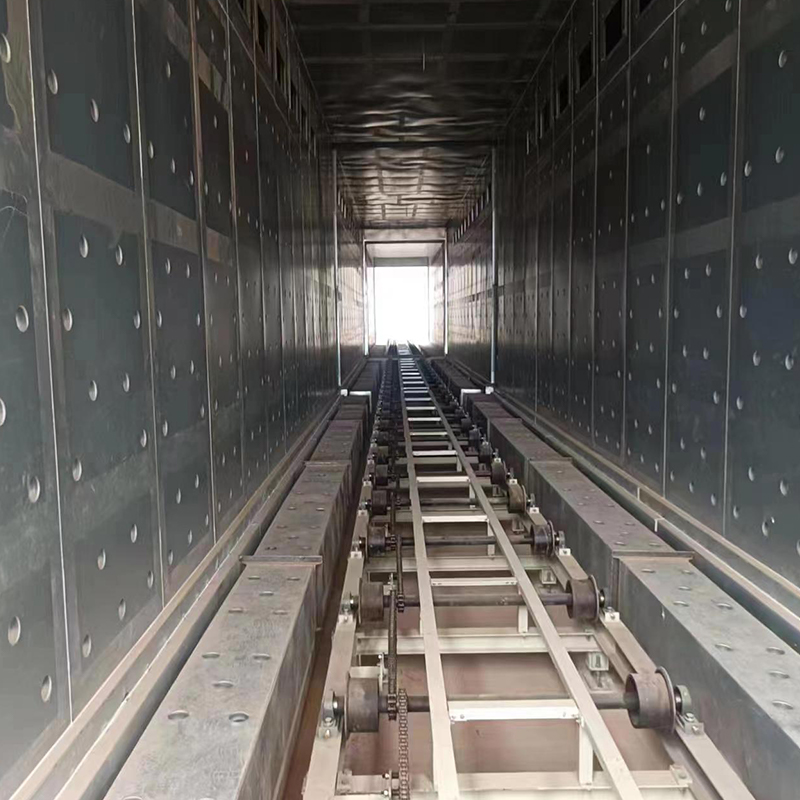

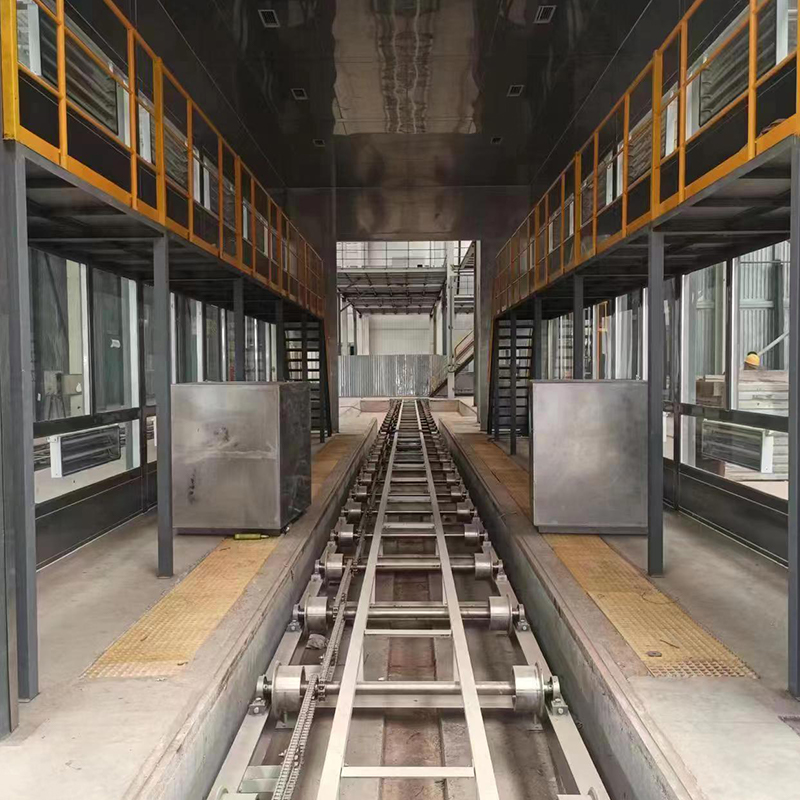

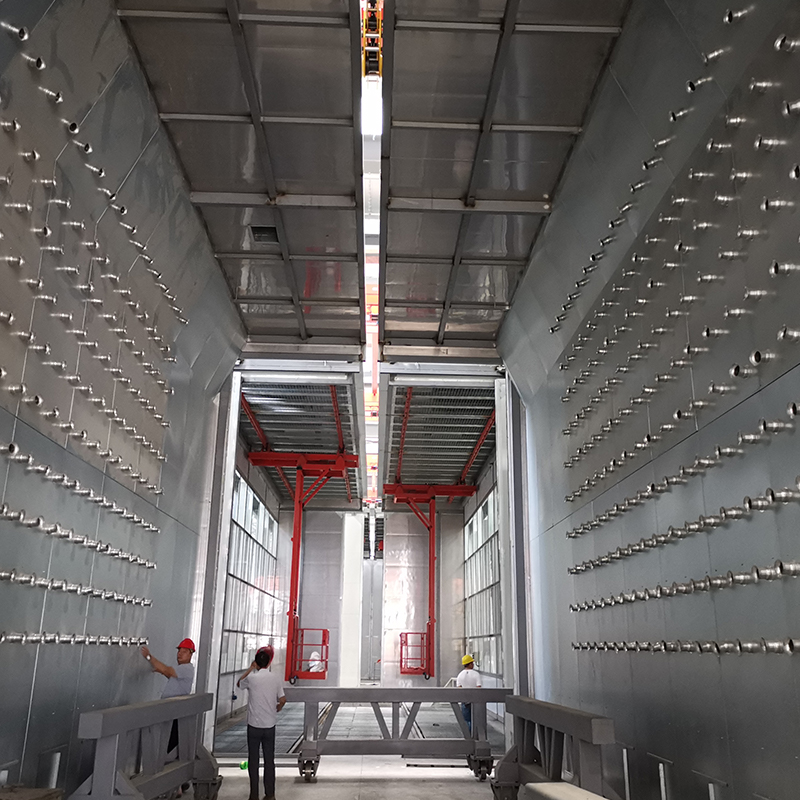

Drying Room

Drying Room is a large-scale industrial drying and curing equipment, mainly used for batch drying, dehydrating, and curing of large workpieces, bulk materials, and continuous production lines. It adopts advanced hot air circulation technology and a precision constant temperature control system, equipped with a thickened thermal insulation layer to reduce heat loss effectively. The equipment has a reasonable internal structure, no drying dead angle, and can be customized according to the actual production needs (size, temperature range, heating mode), ensuring efficient, stable, and safe operation in industrial production.

Contact Us
PREV：Platform Cart NEXT：Electrophoretic Coating Line
  • Product Details

Core Advantages:

1. Constant Temperature & Uniform Drying Effect
①Uniform internal temperature distribution, no local overheating or low-temperature dead corners.
②Fully cured paint and powder coating, no stickiness, peeling or cracking.
③Not affected by external weather, stable production all year round.

2. Multiple Heating Options Available
①Electric, gas, hot air circulation and steam heating are optional.
②Fast temperature rise, precise temperature control and small temperature difference.

3. Energy Saving & Low Operating Cost
①High-efficiency hot air circulation design, high heat utilisation, and lower energy consumption.
②Thickened insulation layer, good heat insulation and less heat loss.
③Sealed structure avoids heat loss, saving electricity and gas.

4. Strong Adaptation & Customisation
①Customizable size, temperature and internal layout according to workpieces.
②Suitable for spraying, powder coating, electrophoresis and post-washing drying processes.
③Compatible with production lines, trolleys and overhead conveyor systems.

5. Complete Safety Protection
①Over-temperature alarm, automatic power off, and overheat protection.
②Fireproof insulation material, explosion-proof and ventilation design for safer operation.
③Low-noise operation, comfortable workshop environment.

6. Sturdy Durable Structure & Easy Maintenance
①Thickened sheet metal structure, anti-corrosion and long service life.
②Modular design, easy installation, disassembly and later maintenance.

About Us
JIANGSU YUE ZE ENVIRONMENTAL PROTECTION EQUIPMENT CO.,LTD.
JIANGSU YUE ZE ENVIRONMENTAL PROTECTION EQUIPMENT CO.,LTD.
As dry booth manufacturer and curing booth company, Jiangsu Yue Ze Environmental Protection Equipment Co., Ltd. located in Yanchen, Jiangsu, China, spanning 35, 000 square meters with a registered capital of 58 million yuan, more than 40 years of experience in powder coating Line; electric car assembly line; drawer type bus production line; automative counterweight spray line; automotive body spray bake paint booth;large-sized parts grinding room; paint and bake booth; waste gas treatment equipment; new high infrared radiation drying series; Counterweight block logistics automated conveying series; and so on.
In 2014, we were the very first factory to create a hanging automatic painting process line for casting counterweight blocks, including a complete set of designs from the finishing and polishing of castings to the primer + top paint line of castings. The products cover different painting processes for large, medium, and small parts. The projects are spread across various provinces in the country and many countries. There are many significant achievements and rich experience in the industry. We have the perfect facilities to deliver the quality ensured equipment to our global customer network. Most of our machines are specially customized to meet customers' challenging machining requirements. Our development and design capabilities allow us to respond quickly and effectively to meet the client's requirements. Our development and design capabilities allow us to respond quickly and effectively to meet the client's requirements. We are expecting your visit and cooperation!
Certificate Of Honor
  • Utility Model Patent Certificate
  • Utility Model Patent Certificate
  • Utility Model Patent Certificate
  • Utility Model Patent Certificate
  • Utility Model Patent Certificate
  • Utility Model Patent Certificate
  • High-Tech Enterprise Certificate
  • Certificate of Occupational Health and Safety Management System Certification
  • Certificate of Occupational Health and Safety Management System Certification
  • Environmental Management System Certification
  • Environmental Management System Certification
News
Related Products
Industry knowledge

Key Advantages of a Drying Room in Coating Production

A Drying Room removes residual moisture from workpieces after pretreatment washing, ensuring the surface is completely dry before it enters the coating or curing stage. Leftover moisture trapped beneath a coating film can lead to blistering, poor adhesion, or corrosion starting from underneath the finish, so this step plays a direct role in long-term coating durability. Compared with allowing parts to air dry, a properly designed drying room can cut moisture removal time to a fraction of natural air drying, keeping the production line moving at a consistent pace rather than waiting on ambient conditions that vary with humidity and temperature.

Because this stage sits right before coating application, controlling temperature and airflow in the drying room also helps stabilize the surface temperature of the workpiece, which can affect how evenly the following coating layer is applied.

How a Dry Booth and Curing Booth Differ in Function

Although often discussed together, a dry booth and a curing booth serve distinct purposes within the coating process:

  1. Dry booth: removes surface moisture after washing, typically operating at moderate temperatures to evaporate water without affecting the base material;
  2. Curing booth: applies higher, sustained temperatures after coating application to chemically harden or fuse the coating film;
  3. Airflow circulation system: distributes heated air evenly across the chamber in both booth types to avoid hot or cold spots;
  4. Temperature control system: monitors and adjusts heating output to maintain the target range throughout the cycle.

Because curing generally requires higher and more precisely controlled temperatures than drying, a curing booth is typically built with stronger insulation and more responsive heating elements than a booth designed only for moisture removal.

Heating Methods Used in a Heating Booth

A heating booth used for drying or curing can rely on different heat sources depending on the coating process and energy considerations. Jiangsu Yue Ze Environmental Protection Equipment Co., Ltd., located in Yancheng, Jiangsu, China, spans 35,000 square meters with a registered capital of 58 million yuan and brings more than 40 years of experience in new high infrared radiation drying series equipment and complete coating production line design. This experience supports the selection of heating methods suited to different workpiece materials and production throughput requirements.

Heating Method Comparison

Table: Comparison of common heating methods used in drying and curing booths
Heating Method Heat-Up Speed Typical Use
Hot air circulation Moderate General drying rooms

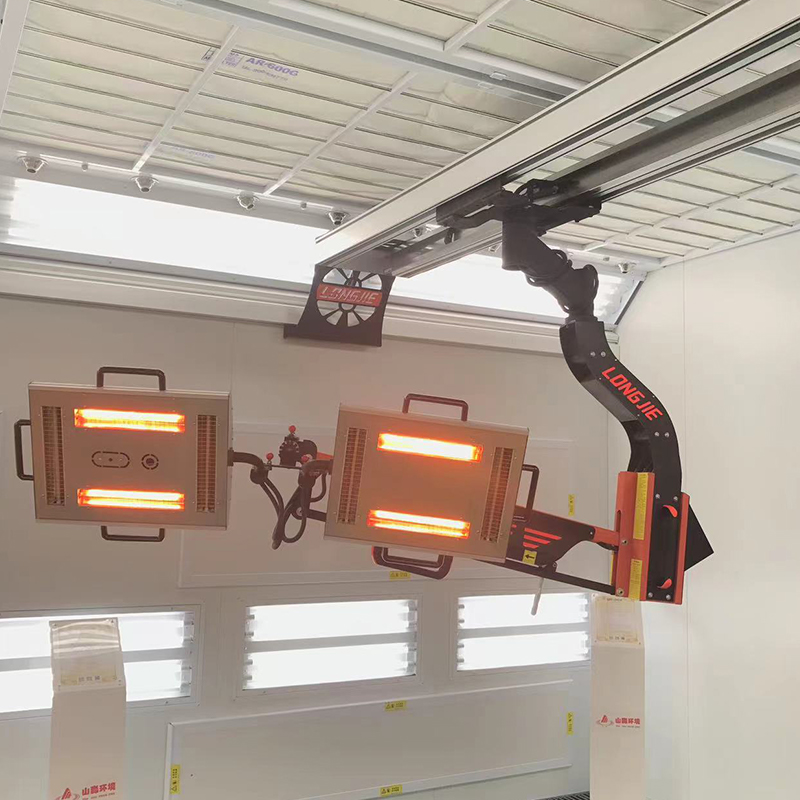

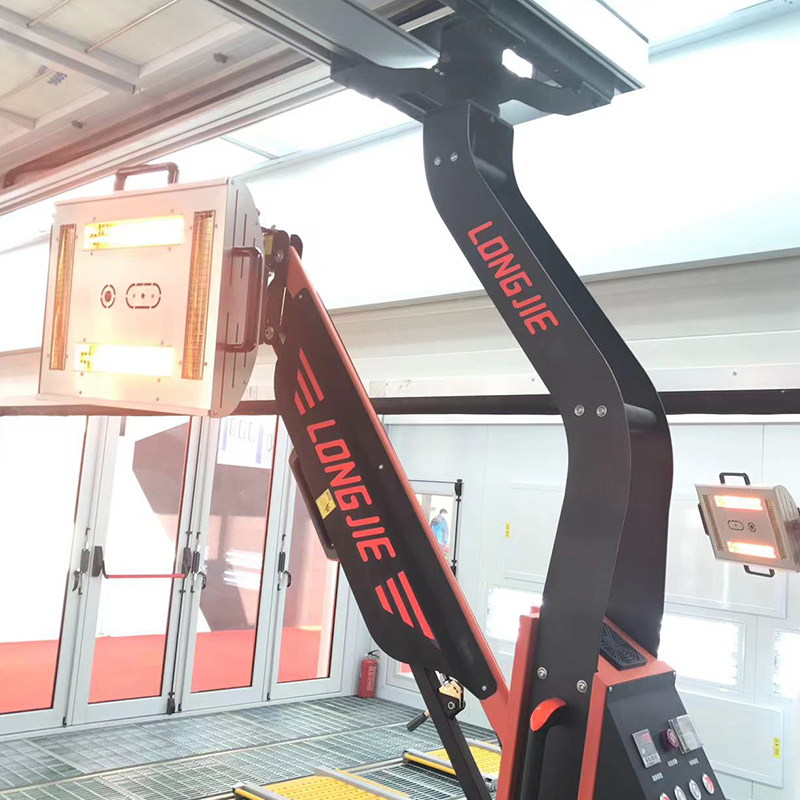

Infrared radiation Fast Rapid surface drying and spot curing
Combined hot air and infrared Fast, uniform High-volume curing booths

Frequently Asked Questions

Q1: Why is a Drying Room necessary before coating application?

Residual moisture on the workpiece surface can interfere with coating adhesion and lead to defects such as blistering, so removing moisture beforehand helps ensure the coating bonds properly and lasts longer.

Q2: What is the main difference between a dry booth and a curing booth?

A dry booth removes moisture at moderate temperatures before coating, while a curing booth operates at higher, sustained temperatures after coating to harden or fuse the applied film.

Q3: Can a heating booth be customized for different production volumes?

Yes. Chamber size, heating method, and airflow capacity can be adjusted based on throughput needs. Jiangsu Yue Ze Environmental Protection Equipment Co., Ltd. offers customized drying and curing equipment configurations based on decades of coating line engineering experience.
