Pyrolysis Furnace & Cleaning Booth

Key Advantages of a Pyrolysis Furnace for Coating Rack Cleaning

A Pyrolysis Furnace removes accumulated paint, powder coating residue, and carbon buildup from hooks, hangers, racks, and jigs by thermally decomposing organic material at high temperature inside a sealed chamber. Over repeated production cycles, these fixtures collect layer after layer of coating residue, which can eventually interfere with electrical grounding during electrostatic spraying and reduce the accuracy of part positioning on the line. Compared with chemical stripping or manual scraping, a pyrolysis process can fully decompose organic coating residue without leaving chemical waste residue on the metal surface, restoring hooks and racks to a condition close to bare metal so they can be returned to service.

Because the process relies on controlled combustion rather than solvents or abrasive media, it also avoids the disposal challenges associated with spent chemical stripping agents, simplifying waste management for the facility.

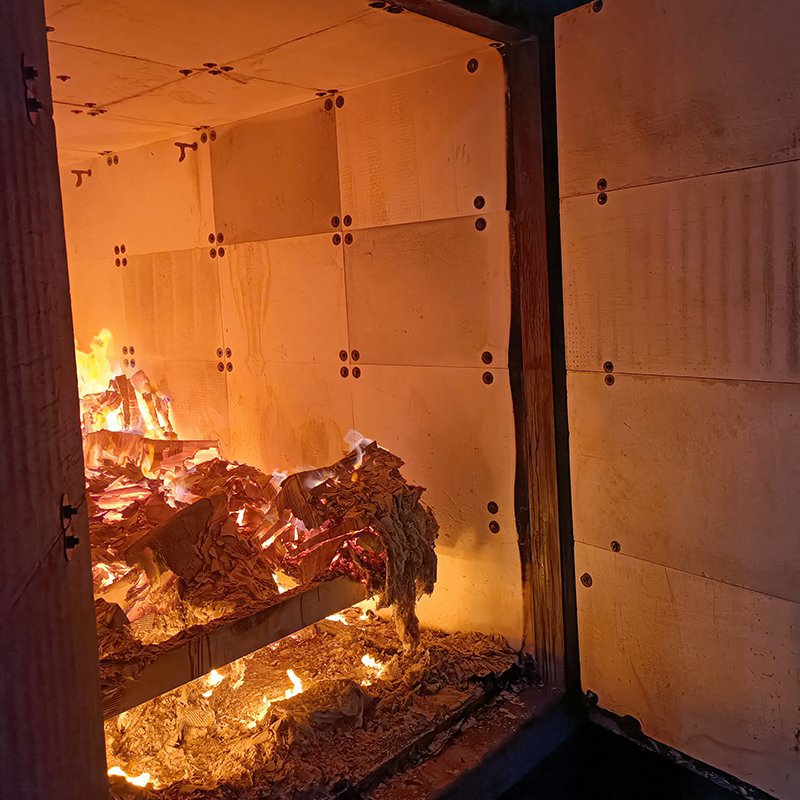

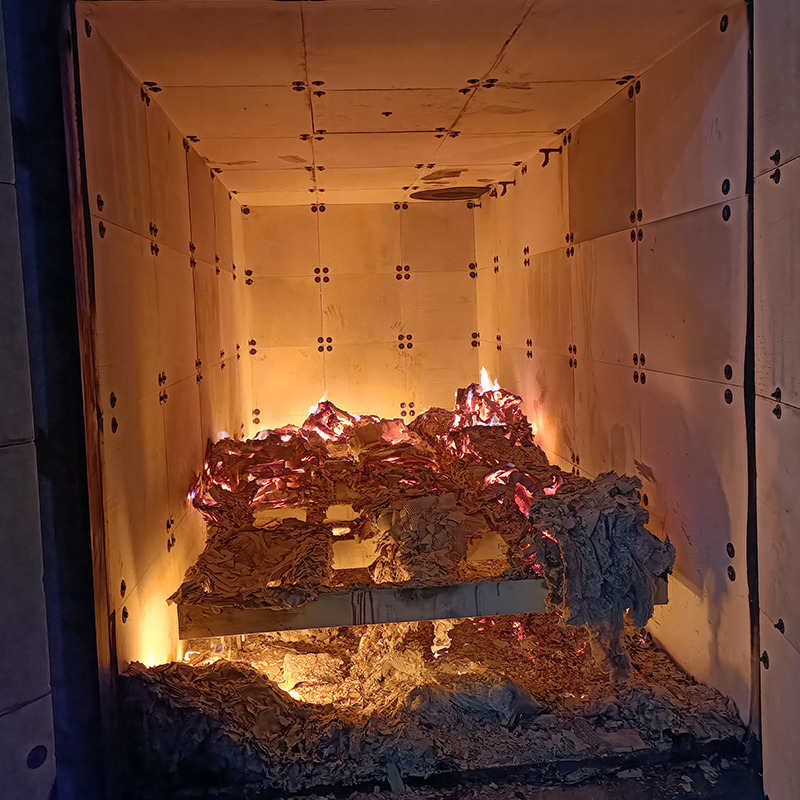

How the Pyrolysis Cleaning Process Works

A typical pyrolysis furnace cycle for hook and rack cleaning involves the following stages:

1. Loading: hooks, hangers, and jigs are placed inside the sealed furnace chamber;
2. Heating phase: chamber temperature rises gradually to decompose organic coating material without damaging the underlying metal;
3. Combustion control: an afterburner or secondary combustion stage treats gases released during decomposition to reduce emissions;
4. Cooling and ash removal: fixtures cool before residual ash is removed, leaving cleaned metal ready for reuse.

Temperature control during the heating phase is important, since excessive heat applied too quickly can warp thin metal fixtures, while insufficient temperature may leave residue incompletely decomposed.

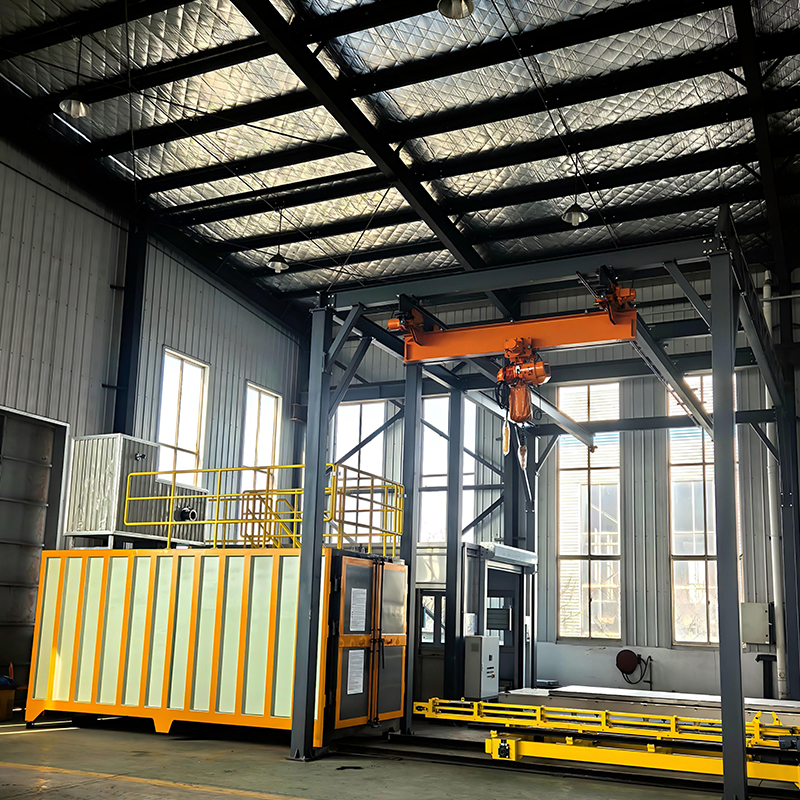

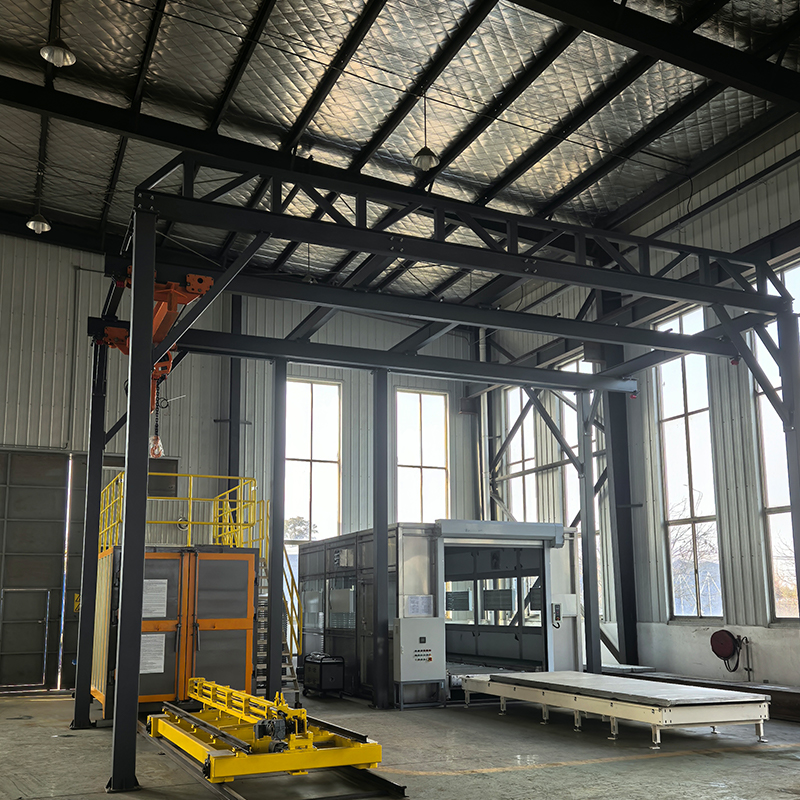

Integrating a Cleaning Booth into Fixture Maintenance Workflows

A cleaning booth positioned alongside the pyrolysis furnace can be used for pre-sorting fixtures, cooling parts after the furnace cycle, or performing light manual cleanup before hooks are returned to the production line. Jiangsu Yue Ze Environmental Protection Equipment Co., Ltd., located in Yancheng, Jiangsu, China, spans 35,000 square meters with a registered capital of 58 million yuan and brings more than 40 years of experience in waste gas treatment equipment and complete coating production line design. This experience supports the integration of fixture cleaning equipment with a facility's broader coating and conveying systems, helping maintain a steady supply of clean hooks and racks for ongoing production.

Fixture Cleaning Method Comparison

Frequently Asked Questions

Q1: Why does coating residue on hooks and racks need to be removed regularly?

Accumulated coating buildup can interfere with electrical grounding during electrostatic spraying and affect how precisely parts sit on the fixture, which can reduce coating quality and consistency over time.

Q2: How does a Pyrolysis Furnace compare with chemical stripping for cleaning fixtures?

A pyrolysis furnace decomposes organic residue through controlled heat rather than chemical reaction, avoiding the hazardous liquid waste associated with chemical stripping while achieving thorough residue removal.

Q3: Can a Cleaning Booth be integrated with an existing pyrolysis furnace setup?

Yes. A cleaning booth can be positioned to support sorting, cooling, or light cleanup around the furnace cycle. Jiangsu Yue Ze Environmental Protection Equipment Co., Ltd. designs fixture maintenance equipment that integrates with a facility's overall coating line layout.
