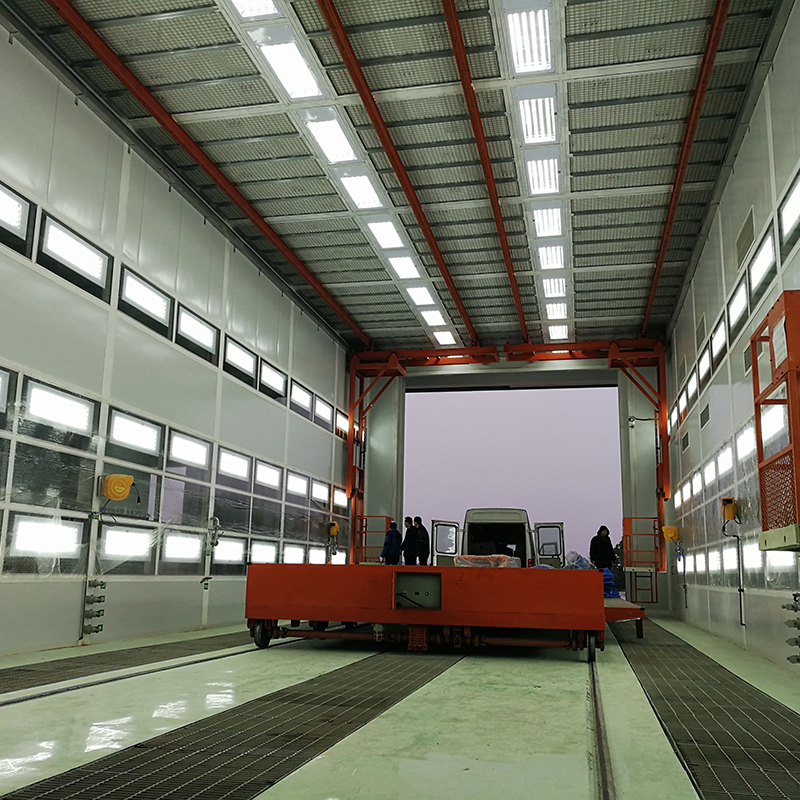

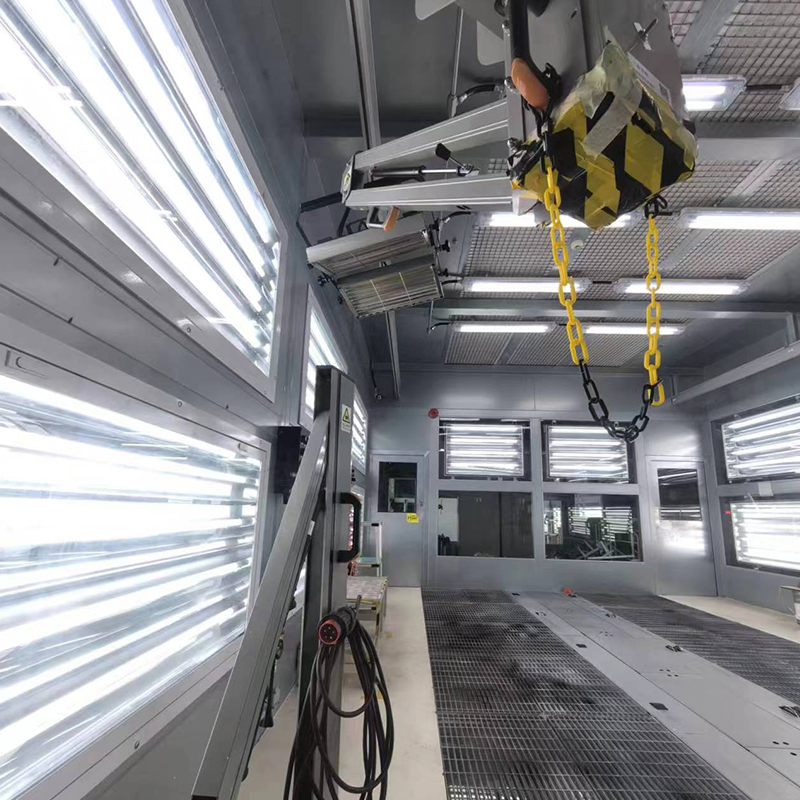

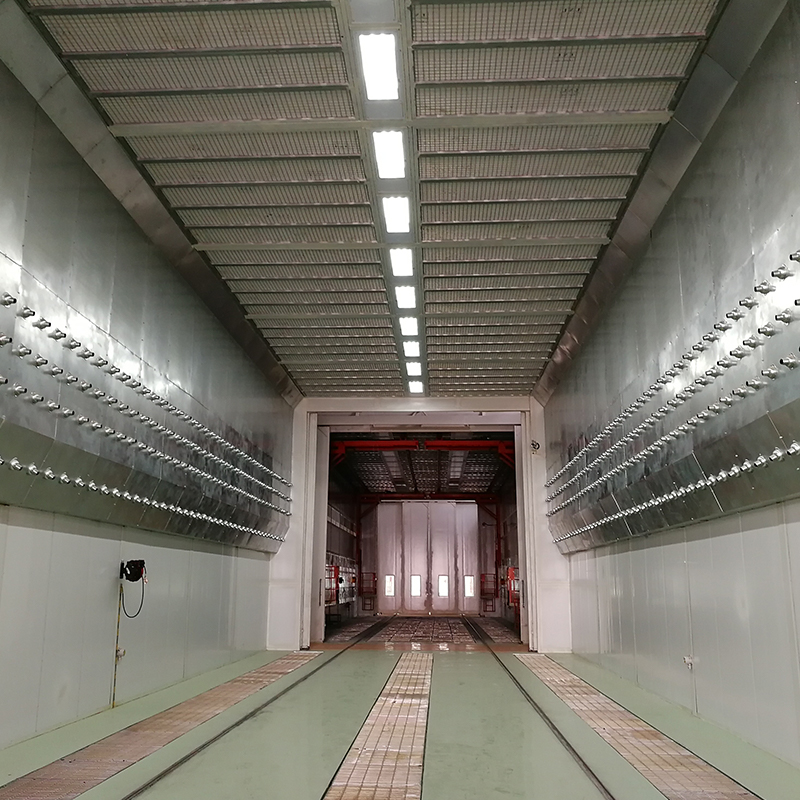

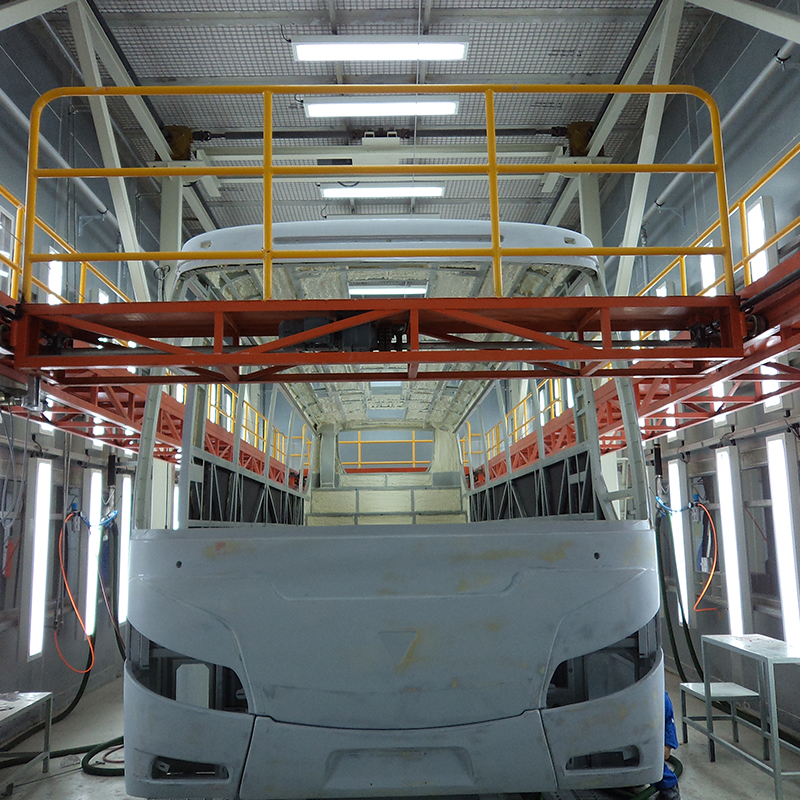

Heavy Vehicle Spray Booth

Why a Heavy Vehicle Spray Booth Requires a Different Design Approach

A Heavy Vehicle Spray Booth is built to accommodate trucks, buses, and other large vehicles that exceed the dimensions handled by a standard car spraying booth. Larger internal chamber height and length, higher-capacity airflow systems, and reinforced structural framing are required to maintain even ventilation and consistent drying across a much bigger surface area. Compared with a typical automotive spray booth designed for passenger cars, a heavy vehicle unit must move a significantly larger volume of air per minute to keep overspray under control and maintain uniform temperature during the bake cycle, since uneven heat distribution across a long vehicle body can lead to inconsistent curing and visible finish defects.

Buyers researching a car spray booth for sale or an automotive spray booth for sale should therefore confirm the internal dimensions and airflow capacity are matched to the largest vehicle type they intend to process, rather than assuming a standard passenger-car booth can be scaled up without adjustment.

How an Automotive Paint Spray Booth Works

Whether sized for passenger cars or heavy vehicles, an automotive paint spray booth generally follows the same core process stages:

1. Air intake and filtration: draws in fresh air and filters it before it enters the spray chamber;
2. Spray phase: applies primer, base coat, and clear coat under controlled airflow to minimize dust contamination;
3. Bake phase: raises chamber temperature to cure the coating within a set time and temperature profile;
4. Exhaust and cooling: removes fumes and gradually cools the vehicle before it exits the booth.

In a car spray paint booth, airflow direction is typically engineered to move from ceiling to floor, carrying overspray downward and away from the painted surface, which helps reduce dust nibs and improve finish quality.

Choosing Among Auto Spray Booth Options

When comparing an auto spray booth for sale, factories and body shops should evaluate chamber size, heating method, filtration efficiency, and energy consumption. Jiangsu Yue Ze Environmental Protection Equipment Co., Ltd., located in Yancheng, Jiangsu, China, spans 35,000 square meters with a registered capital of 58 million yuan and brings more than 40 years of experience in automotive body spray bake paint booths, drawer type bus production lines, and related large-vehicle coating equipment. The company's engineering background in designing paint and bake booths for both passenger vehicles and heavy-duty buses allows it to configure booth systems suited to different vehicle sizes and production volumes.

Spray Booth Selection Reference by Vehicle Type

Frequently Asked Questions

Q1: What makes a Heavy Vehicle Spray Booth different from a standard car spray booth?

A heavy vehicle unit has a larger internal chamber, higher airflow capacity, and reinforced structure to handle the size and weight of trucks and buses, whereas a standard car spraying booth is designed around the smaller dimensions of passenger vehicles.

Q2: What should buyers check before purchasing an automotive spray booth for sale?

Buyers should confirm internal dimensions match their largest vehicle, verify airflow and heating capacity, and review filtration efficiency to ensure the booth meets both production needs and environmental requirements.

Q3: Can an auto spray booth be customized for mixed vehicle sizes?

Yes. Manufacturers with in-house design capability, such as Jiangsu Yue Ze Environmental Protection Equipment Co., Ltd., can configure booth dimensions and airflow systems to accommodate a range of vehicle sizes within the same facility, based on the customer's specific fleet or production mix.
