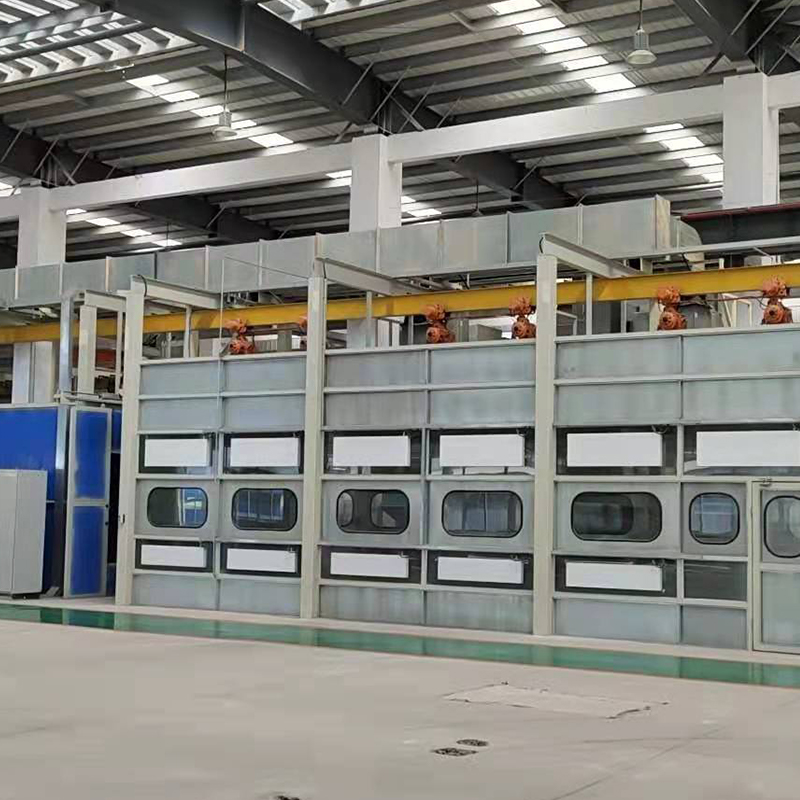

Spray Coating Line For Car Wheel

What Is a Spray Coating Line for Car Wheel

A Spray Coating Line For Car Wheel is a production system designed to coat alloy and steel wheels with a durable, visually consistent finish across a shape that mixes flat spoke faces, curved rim edges, and deep recessed pockets. Unlike flat panel painting, wheel coating has to reach the inner barrel of the rim, the back of each spoke, and the outer face all in the same cycle, which is difficult to achieve without rotating the part during spraying.

Wheels also face direct exposure to road debris, brake dust, curb contact, and repeated washing, so the coating needs to resist chipping and chemical attack in addition to looking uniform straight off the line.

Key Advantages of a Dedicated Wheel Coating Line

Coating wheels on generic flat-part equipment often leaves recessed spoke areas thin or uneven. A dedicated line is built around the wheel's rotating geometry from the start.

How the Wheel Coating Process Works

Most wheel coating lines follow a layered sequence, since wheels typically receive more than one coating pass to achieve both color and protection.

Standard Process Sequence

1. Wheels are cleaned and pretreated to remove machining oil and surface residue
2. Hub bores, bolt holes, and valve stem openings are masked before spraying
3. Primer is applied while the wheel rotates on its fixture for even coverage
4. Base color coat is sprayed, followed by infrared drying between layers
5. Clear coat is applied and cured, after which masking is removed for final inspection

Rotating the wheel during each pass lets a fixed spray gun angle still reach the inner barrel and the back of every spoke, which is difficult to achieve consistently if the wheel stays in one position while the gun moves around it.

Matching Coating Type to Wheel Material

Alloy and steel wheels don't always need identical coating systems, since their base surface properties differ.

• Aluminum alloy wheels: primer plus base color and clear coat for a polished, chip-resistant finish
• Steel wheels: corrosion-resistant primer as the priority layer, often with a simpler top coat
• Machined-face wheels: selective masking to preserve bare metal accents before painting

Manufacturing Scale Behind the Equipment

Jiangsu Yue Ze Environmental Protection Equipment Co., Ltd., located in Yancheng, Jiangsu, China, operates a facility spanning 35,000 square meters with a registered capital of 58 million yuan, and reports more than 40 years of combined experience across powder coating lines, paint and bake booths, and waste gas treatment equipment. Machines are custom-built to meet challenging machining requirements, with projects completed across multiple provinces and export markets.

Frequently Asked Questions

Q1: Why do wheels need to rotate during spraying?

Rotating the wheel exposes every spoke face and the inner rim barrel to the spray gun at a consistent angle, which is difficult to achieve if the wheel remains fixed in one position.

Q2: Why is masking the hub bore and bolt holes so important?

Coating on these mounting surfaces can affect how the wheel seats against the hub, so they are masked before spraying and unmasked after curing to preserve proper fitment.

Q3: What does the clear coat layer actually protect against?

Clear coat adds a protective layer over the base color that helps resist chipping from road debris and chemical attack from brake dust and cleaning products.

Q4: What should buyers confirm before ordering a wheel coating line?

Buyers should confirm the wheel diameter range the fixtures can accommodate, the number of coating layers included, and whether the supplier has completed similar wheel-coating projects before.
