Coating Line For Small Components

What Is a Coating Line for Small Components

A Coating Line For Small Components is built to handle parts too small or too numerous to hang individually on a standard conveyor hook, such as brackets, fasteners, small brackets, connectors, and other hardware produced in batches. The core challenge is different from large-part coating: instead of positioning one large workpiece precisely, the line has to move many small pieces at once without letting them touch, stack, or shadow each other during spraying.

Because small components are usually produced in high volume, the line also needs a fast, repeatable cycle time rather than the slower, single-piece handling used for large castings or body panels.

Key Advantages of a Dedicated Small Component Line

Running small parts through equipment designed for large components usually wastes booth space and slows throughput. A dedicated line addresses this directly.

How the Small Component Coating Process Works

Small parts typically move through the same basic stages as larger components, but fixture design and spacing become the most important details.

Standard Process Sequence

1. Parts are cleaned and pretreated, often in batches within a basket or rack
2. Components are loaded onto multi-hook fixtures with enough spacing to avoid contact
3. Primer or single-stage coating is applied inside the compact spray booth

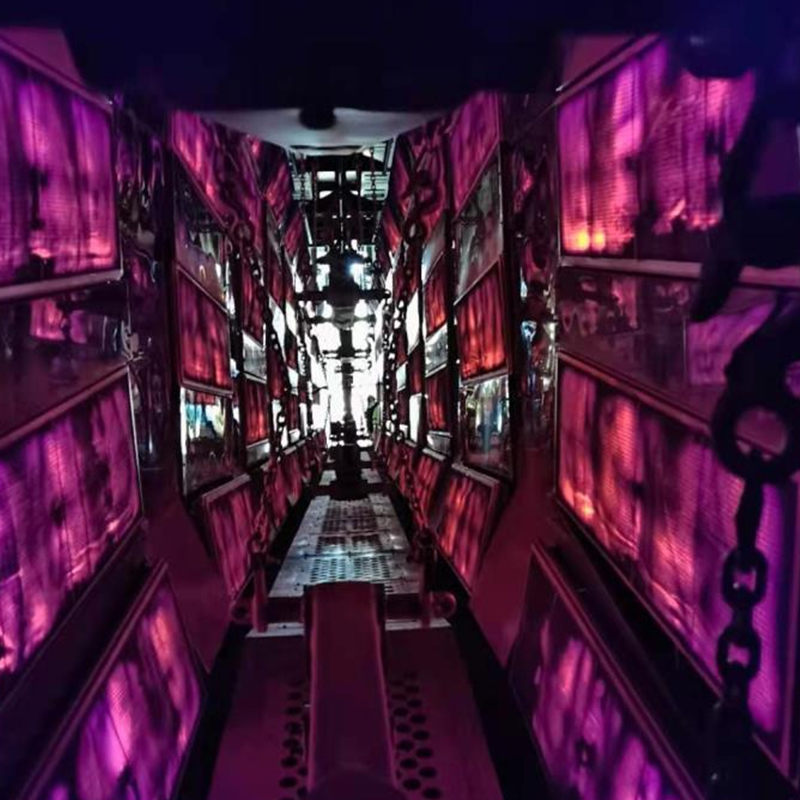

4. Infrared radiation drying cures the coating quickly due to the parts' lower thermal mass
5. Finished parts are unloaded and sorted for packaging or assembly

Because small components have much less thermal mass than large castings, they generally reach curing temperature faster, which allows the drying stage to run at a shorter cycle time without under-curing the coating.

Common Fixture Approaches for Small Parts

Fixture choice usually depends on part shape and how easily it can hang without shifting during spraying.

• Multi-hook bars: suited for parts with a hole or hanging point, such as brackets and clips
• Rotating baskets: suited for loose small hardware without a fixed hanging point
• Custom jigs: suited for parts needing selective masking or a fixed orientation

Manufacturing Scale Behind the Equipment

Jiangsu Yue Ze Environmental Protection Equipment Co., Ltd., located in Yancheng, Jiangsu, China, operates a facility spanning 35,000 square meters with a registered capital of 58 million yuan, and reports more than 40 years of combined experience in powder coating lines and other production equipment covering large, medium, and small parts alike. Machines are custom-built to meet challenging machining requirements, with projects completed across multiple provinces and export markets.

Frequently Asked Questions

Q1: Why can't small components use the same line as large parts?

Large-part equipment is sized for single-piece handling and slower cycle times, which wastes booth space and reduces throughput when coating many small parts per batch.

Q2: How does the line prevent small parts from touching during spraying?

Fixtures such as multi-hook bars or rotating baskets are designed with fixed spacing so parts hang or tumble separately, avoiding contact marks and uncoated patches.

Q3: Do small components need a shorter curing cycle?

Often yes, since small parts have lower thermal mass and heat up faster than large castings, allowing shorter curing times without under-curing the coating.

Q4: What should buyers confirm before ordering a small component coating line?

Buyers should confirm the fixture type suited to their part shape, expected batch size per cycle, and whether the supplier has handled similar small-part volumes before.
