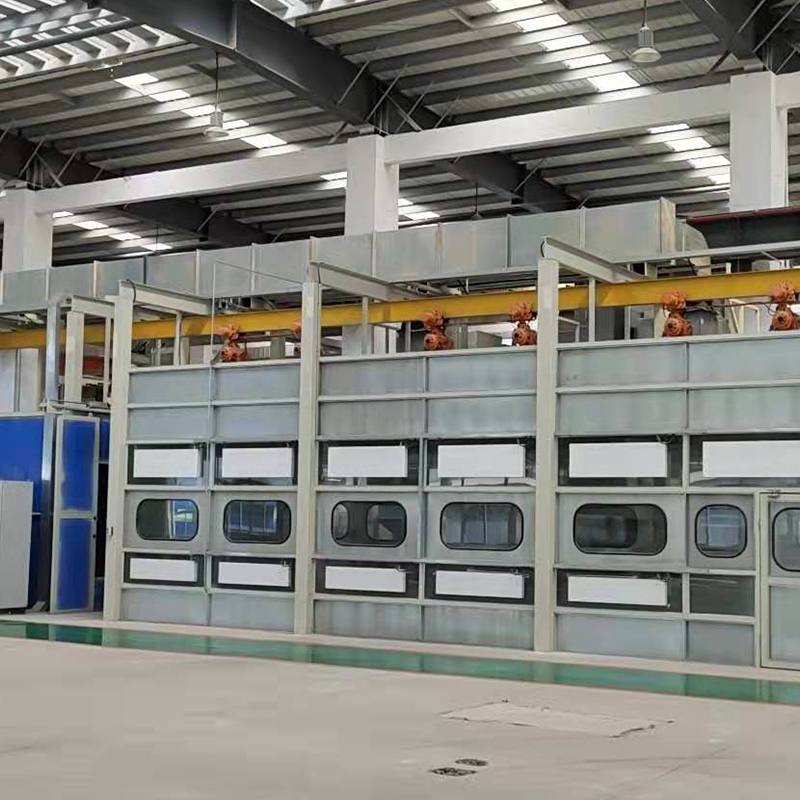

Truck Body Coating Line

What Is a Truck Body Coating Line

A Truck Body Coating Line is a production system built to prime, paint, and cure large panel structures such as cargo boxes, cab shells, drawer-type bus bodies, and chassis-mounted panels. Compared with passenger car body lines, a truck body line has to move much larger and heavier sheet-metal assemblies through the same pretreatment, spray, and curing stages, which changes almost every dimension of the equipment — from conveyor load capacity to booth width and door clearance.

Truck bodies also tend to have flat, wide panel surfaces where any unevenness in film thickness is highly visible, so airflow control inside the spray booth becomes especially important for a consistent finish.

Key Advantages of a Dedicated Truck Body Line

Running truck bodies through equipment sized for smaller vehicles often creates bottlenecks. A dedicated line is designed around the actual dimensions and weight of truck panels from the start.

How the Truck Body Coating Process Works

A truck body typically passes through several fixed stages, with each stage sized to handle full panel assemblies rather than individual small parts.

Standard Process Sequence

1. The body shell is cleaned and pretreated to remove oil, dust, and welding residue

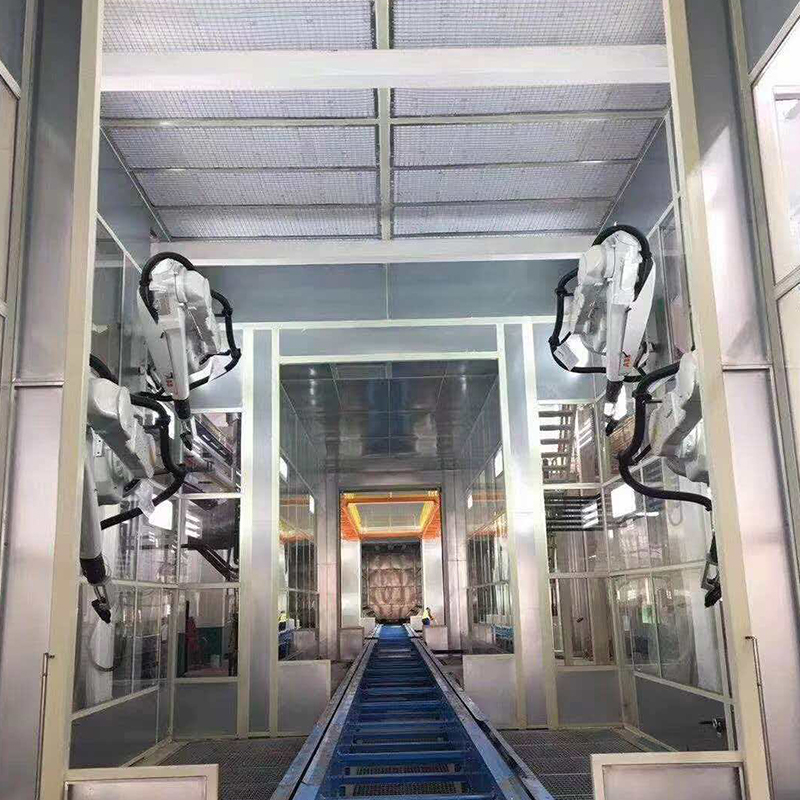

2. Primer is applied inside the paint and bake booth under controlled airflow
3. Infrared radiation drying cures the primer before the top coat is sprayed

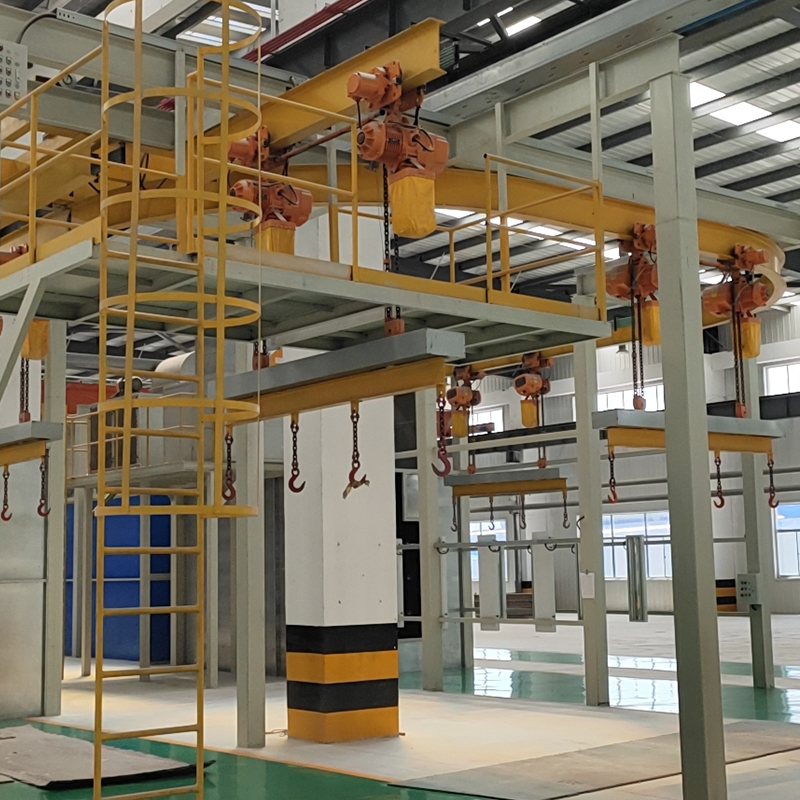

4. The finished body moves through the automated conveying system to final inspection

Because truck body panels are large and flat, even small variations in booth airflow can create visible streaking, which is why booth pressure and filter condition are checked more frequently on truck body lines than on lines built for small parts.

Matching the Line to Different Truck Body Types

Not all truck bodies share the same shape or coating priority, so line configuration is usually adjusted by body type.

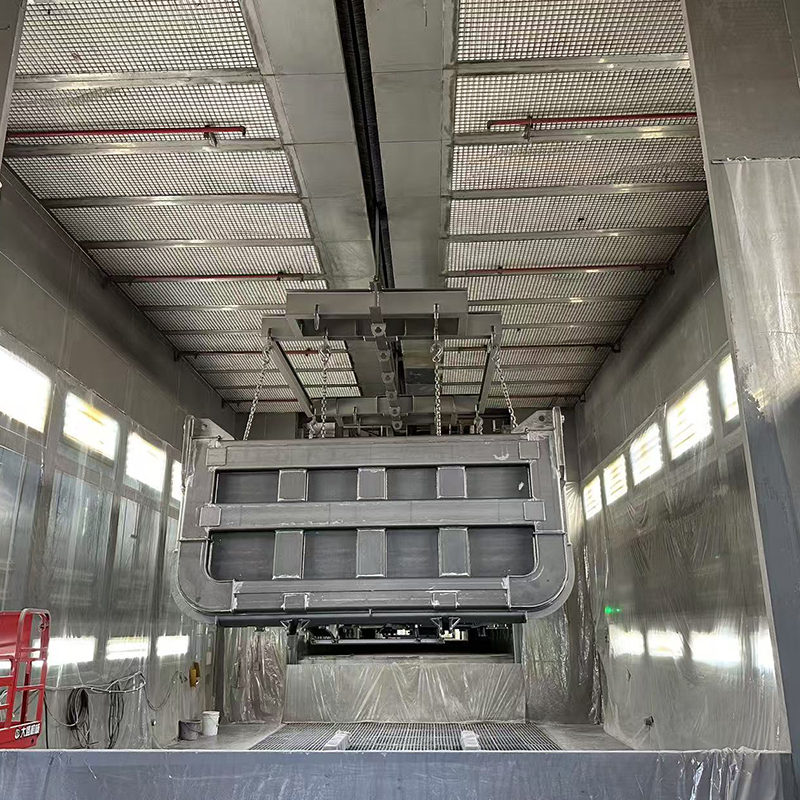

• Cargo box bodies: large flat panels requiring wide booth openings and consistent film thickness
• Drawer-type bus bodies: multi-panel structures needing multi-angle spray coverage
• Cab shells: curved and welded sections requiring careful masking around glass and trim mounting points

Manufacturing Scale Behind the Equipment

Jiangsu Yue Ze Environmental Protection Equipment Co., Ltd., located in Yancheng, Jiangsu, China, operates a facility spanning 35,000 square meters with a registered capital of 58 million yuan, and reports more than 40 years of combined experience across powder coating lines, drawer-type bus production lines, and automotive body spray bake booths. Machines are custom-built to meet challenging machining requirements, with projects spread across multiple provinces and export markets.

Frequently Asked Questions

Q1: How is a truck body coating line different from a car body paint line?

Truck bodies are larger and heavier, so the conveying system, booth width, and door clearance all need to be scaled up compared with equipment designed for passenger car panels.

Q2: Why is airflow control more critical on large flat truck panels?

Large flat surfaces make any inconsistency in spray pattern or airflow highly visible, so stable booth pressure is needed to avoid streaking or uneven gloss.

Q3: Can one line handle both cargo boxes and bus bodies?

Yes, as long as the conveyor clearance, booth length, and spray angles are customized during the design stage to fit both body types.

Q4: What should buyers confirm before ordering a truck body coating line?

Buyers should confirm maximum body dimensions and weight, booth airflow design, curing method, and whether the supplier has completed similar large-body projects before.
