Coating Line for Large Castings & Heavy Truck Parts

Understanding a Coating Line for Large Castings & Heavy Truck Parts

A Coating Line for Large Castings & Heavy Truck Parts is built to handle components that are far heavier, larger, and more irregular in shape than typical automotive body panels — counterweight blocks, axle housings, gearbox castings, and truck chassis parts. These parts often weigh from tens to hundreds of kilograms each, which means the conveying system, spray booth dimensions, and curing method all need to be sized differently from a standard passenger-vehicle paint line.

Because casting surfaces frequently include sand residue, porosity, and uneven texture, the line typically starts with a dedicated grinding and finishing stage before any coating is applied, rather than going straight from raw casting to primer.

Key Advantages for Heavy and Irregular Parts

Compared with manual spraying or small-batch equipment, a purpose-built line offers several structural advantages when parts are large, heavy, or produced in high volume.

How the Coating Process Works Step by Step

Although every project is customized to the part geometry, most coating lines for large castings and heavy truck parts follow a similar working sequence.

Standard Process Sequence

1. Castings pass through the grinding room for finishing and polishing

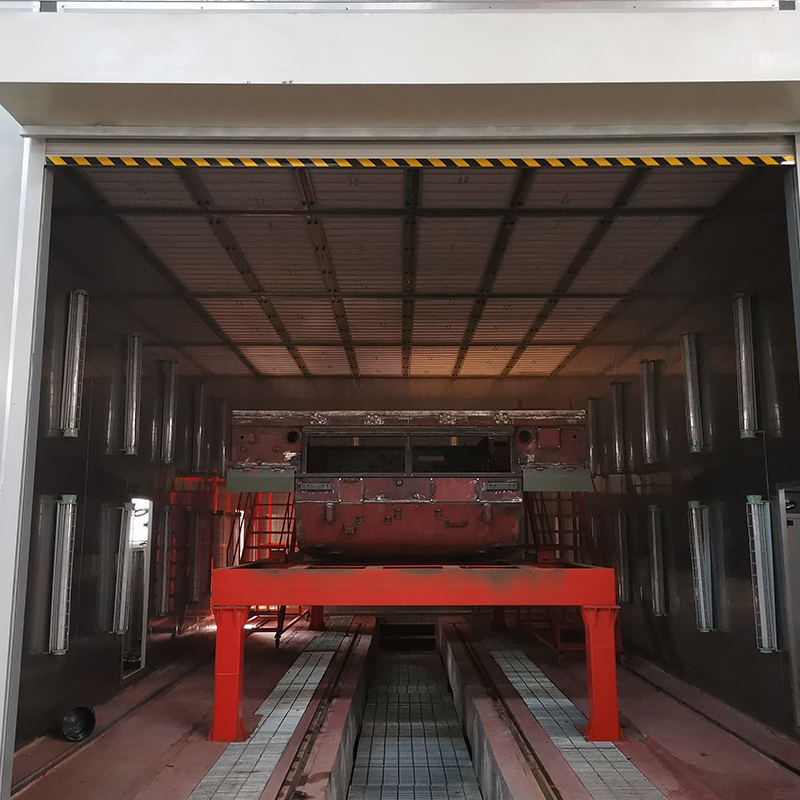

2. Parts are hung on the automated conveying system and moved into the paint and bake booth
3. Primer is sprayed, followed by infrared radiation drying to cure the base layer
4. Top coat is applied and cured before parts move to the logistics conveying stage

Jiangsu Yue Ze Environmental Protection Equipment Co., Ltd. reports that it built the first hanging automatic painting process line for casting counterweight blocks in 2014, combining finishing, polishing, primer, and top-paint stages into one continuous design — the same basic sequence still used for large castings and heavy truck parts today.

Matching the Line to Part Type: Castings vs. Truck Parts

Large castings and heavy truck parts do not always require identical line configurations. Castings such as counterweight blocks are usually solid and dense, demanding stronger hooks and slower conveyor speeds, while truck parts like frames and drawer-type bus components are longer and require wider booth openings and adjustable spray angles.

• Counterweight blocks: dense, compact shape, high load-bearing conveyor hooks

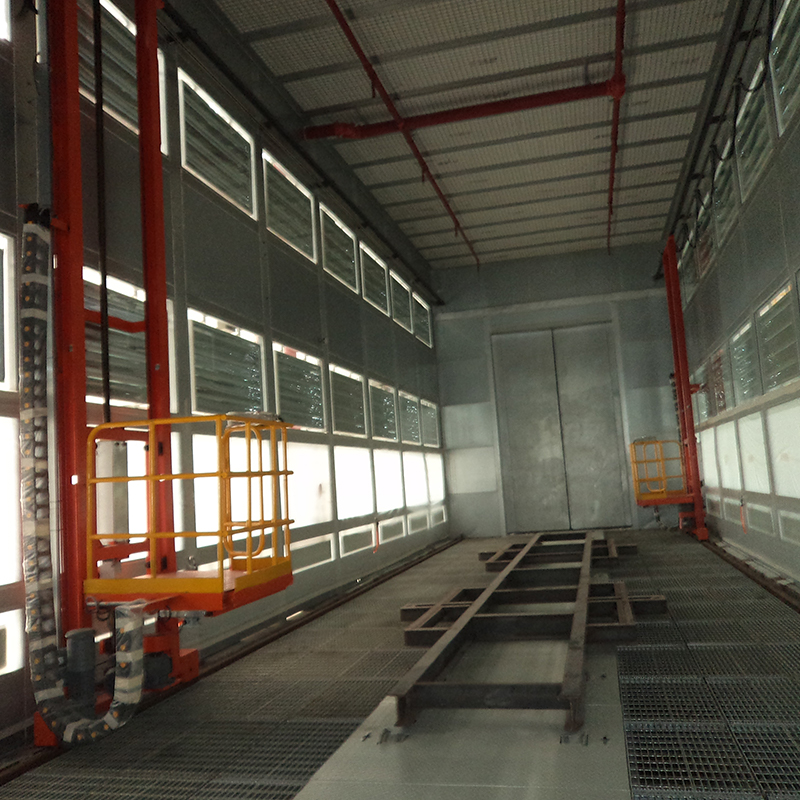

• Truck axles and frames: long and narrow, requiring extended booth length
• Drawer-type bus components: multi-panel structures needing multi-angle spray coverage

Manufacturing Scale Behind the Equipment

Building equipment for heavy castings and truck parts requires a factory with enough physical space and engineering depth to test full-scale lines before shipment. Jiangsu Yue Ze Environmental Protection Equipment Co., Ltd., located in Yancheng, Jiangsu, China, operates a facility spanning 35,000 square meters with a registered capital of 58 million yuan, and reports more than 40 years of combined experience across powder coating lines, automotive counterweight spray lines, and drawer-type bus production lines.

Projects built on this scale are spread across multiple provinces and export markets, with machines specially customized to meet challenging machining requirements for large, medium, and small parts alike.

Frequently Asked Questions

Q1: Why do large castings need a dedicated grinding stage before painting?

Castings often carry sand residue and surface porosity from the molding process. Grinding removes these defects so the primer bonds evenly instead of trapping imperfections under the coating.

Q2: Can one line handle both castings and truck body parts?

Yes, as long as the conveyor load capacity, hook spacing, and booth dimensions are customized to cover the size range of both part types during the design stage.

Q3: How does infrared drying help with thick or heavy parts?

Infrared radiation heats the coating layer directly rather than only warming surrounding air, which helps cure thicker primer and top-coat layers commonly used on heavy castings.

Q4: What information should buyers confirm before ordering a custom line?

Buyers should confirm maximum part weight and dimensions, conveyor speed, booth airflow design, and whether the supplier has completed similar heavy-part projects before.
