Spray Coating Line For Motor Casings

What Is a Spray Coating Line for Motor Casings

A Spray Coating Line For Motor Casings is designed to apply protective and functional coatings onto electric motor housings, including drive motor casings used in vehicles and industrial motor enclosures. Motor casings differ from general machinery covers because they combine precision-machined mounting faces and bearing seats with external cooling fins, and the coating has to protect the housing without interfering with heat transfer or assembly tolerances.

Because motor casings are often exposed to vibration, moisture, and temperature swings during operation, the coating line has to balance corrosion protection on the outer surface with strict masking control on every surface that contacts bearings, seals, or mating housings.

Key Advantages of a Dedicated Motor Casing Line

Coating motor housings on general-purpose equipment risks covering precision surfaces or reducing heat dissipation. A dedicated line is built around these specific constraints.

How the Motor Casing Coating Process Works

Motor casings typically move through a sequence built around protecting precision features while still achieving full exterior coverage.

Standard Process Sequence

1. Casings are cleaned and degreased to remove machining oil and casting residue
2. Bearing seats, mounting faces, and threaded holes are masked before spraying

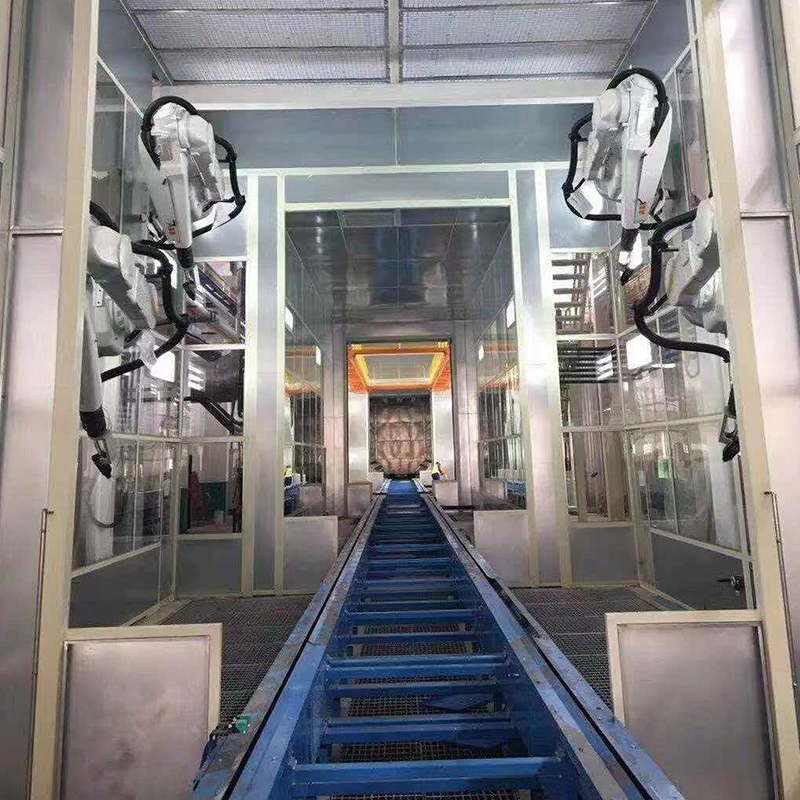

3. Coating is applied using automated spray guns to keep film thickness consistent across the cooling fins
4. Parts are cured through infrared radiation drying at a temperature that protects internal seals
5. Masking is removed and casings move to dimensional and visual inspection

Because coating thickness on cooling fins directly affects how efficiently the motor sheds heat during operation, automated spray guns are typically preferred over manual spraying to keep film build consistent across every fin.

Coating Considerations by Motor Casing Type

Different motor casing applications place different priorities on the coating layer.

• Electric vehicle drive motor casings: corrosion resistance and vibration durability for underbody mounting
• Industrial motor enclosures: coating compatible with outdoor exposure and periodic washdown
• Cooling-fin sections: thin, uniform film to preserve heat dissipation performance

Manufacturing Scale Behind the Equipment

Jiangsu Yue Ze Environmental Protection Equipment Co., Ltd., located in Yancheng, Jiangsu, China, operates a facility spanning 35,000 square meters with a registered capital of 58 million yuan, and reports more than 40 years of combined experience across powder coating lines, electric car assembly lines, and paint and bake booths. Machines are custom-built to meet challenging machining requirements, with projects completed across multiple provinces and export markets.

Frequently Asked Questions

Q1: Why do bearing seats need to be masked before coating?

Coating on a bearing seat or mounting face can change the fit tolerance, so these precision surfaces are masked before spraying and unmasked after curing.

Q2: Can coating thickness affect how well a motor cools itself?

Yes. A coating layer that is too thick on cooling fins can reduce heat transfer efficiency, which is why automated spray control is used to keep film thickness consistent and thin.

Q3: Do EV drive motor casings need different coating priorities than industrial motors?

Generally yes, since EV drive motor casings are mounted closer to the road and need stronger corrosion and vibration resistance compared with many stationary industrial motor enclosures.

Q4: What should buyers confirm before ordering a motor casing coating line?

Buyers should confirm the masking approach for precision surfaces, the target film thickness for cooling fin areas, and whether the supplier has completed similar motor casing projects before.
