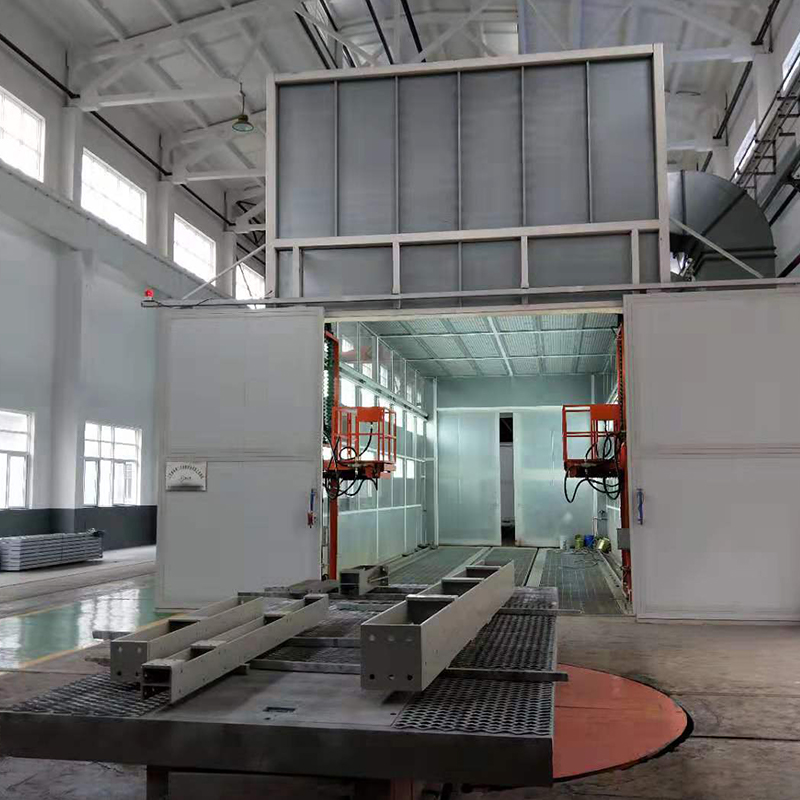

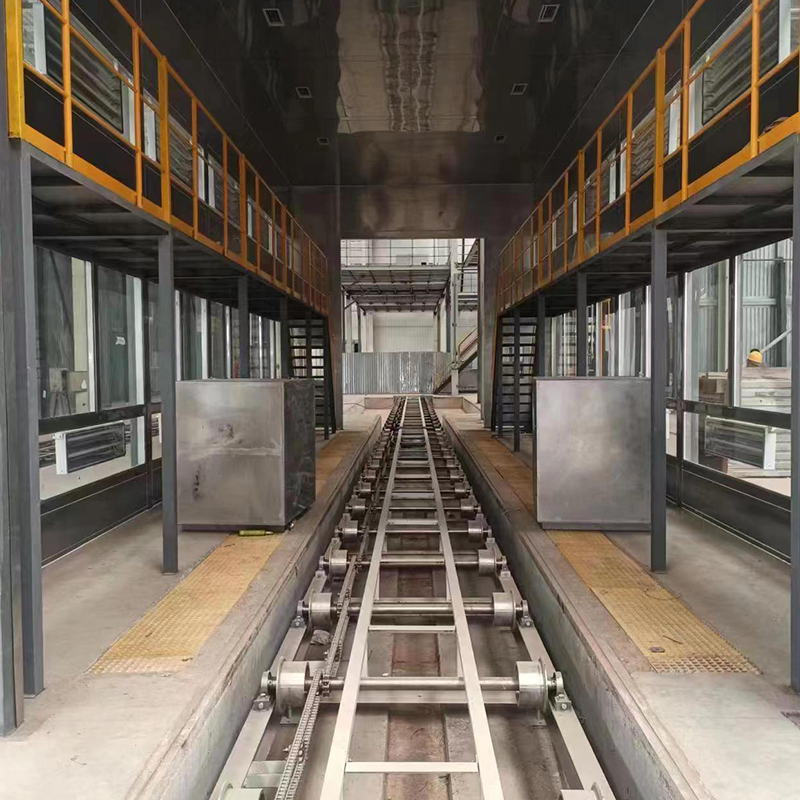

Spray Paint Line

Key Advantages of a Spray Paint Line

A Spray Paint Line connects pretreatment, spraying, and curing stations into one continuous flow, allowing workpieces to move through the entire finishing process without manual transfer between separate pieces of equipment. This continuous setup helps maintain consistent cycle time and coating conditions, which is difficult to achieve when parts are moved by hand between disconnected stations. Compared with standalone spray equipment operated in isolation, an integrated spray line paint setup can reduce total processing time per batch by keeping parts moving through pretreatment, application, and curing without extended waiting periods between stages.

Because the line combines multiple process stages under one control system, it also makes it easier to track cycle time and identify bottlenecks at specific stations, supporting more informed scheduling and maintenance decisions.

How a Paint Line Sprayer Applies Coating

The spraying stage of the line, carried out by a paint line sprayer, generally follows this sequence:

1. Paint supply system: delivers paint at a controlled flow rate and pressure to the spray gun;
2. Atomization: the sprayer breaks the paint into fine droplets for even application across the workpiece surface;
3. Application pattern control: adjusts spray width and pattern shape to match part geometry and reduce overspray;
4. Flash-off and curing: allows solvents to evaporate before the part enters the curing oven to harden the finish.

Spray pressure and gun-to-surface distance both influence the final coating thickness, so these parameters are typically set and monitored carefully within an automated line to avoid runs, drips, or thin spots across production batches.

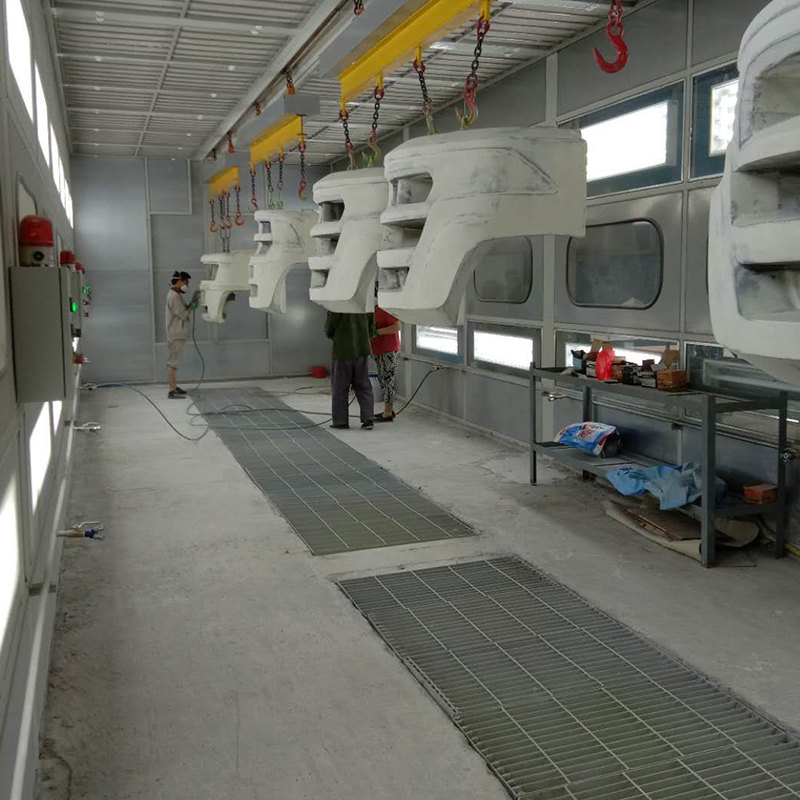

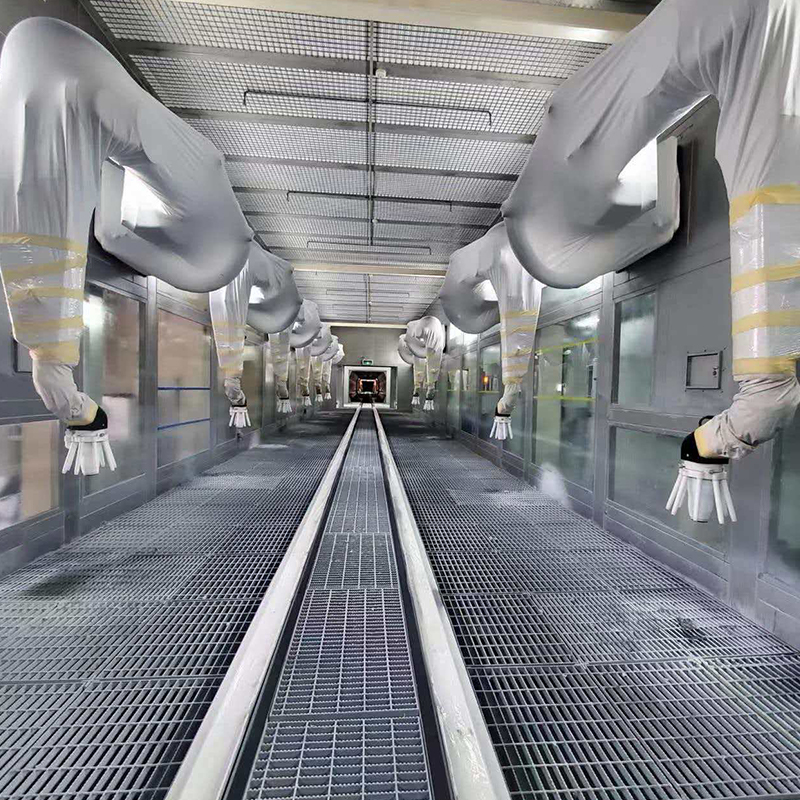

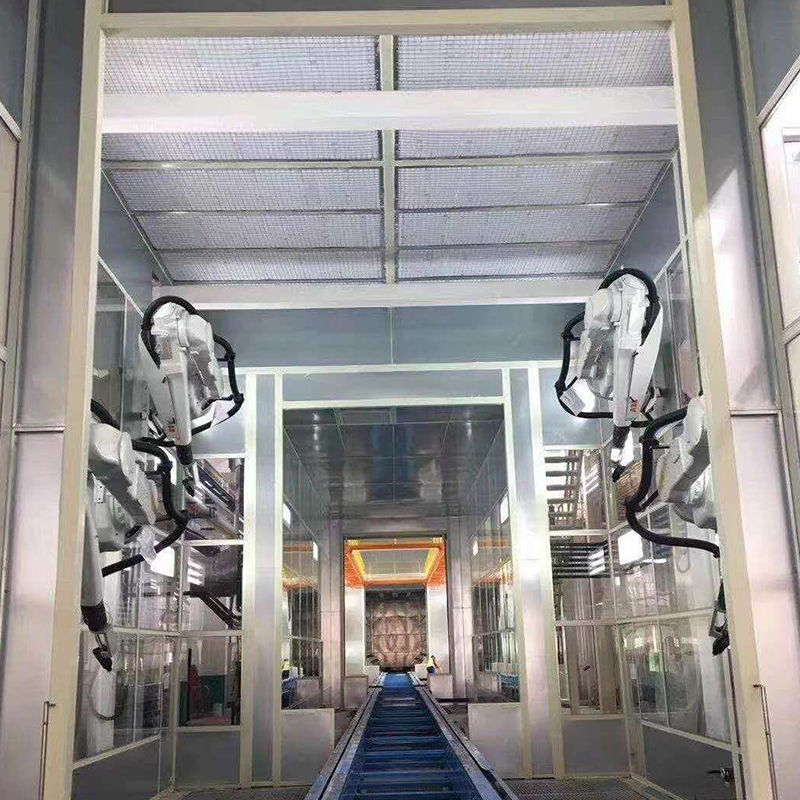

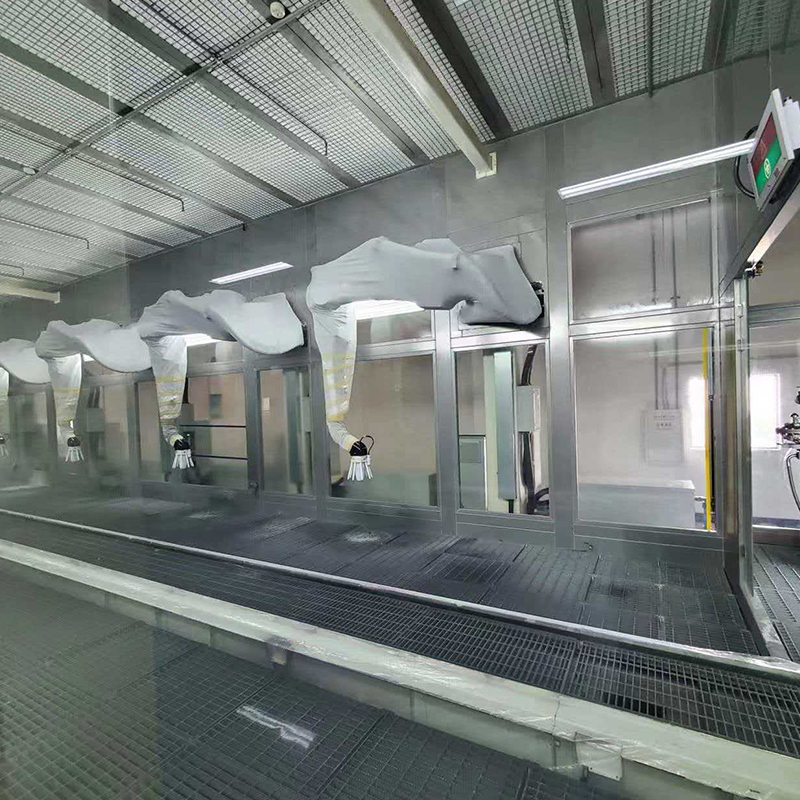

Manual vs. Auto Spraying Line Configurations

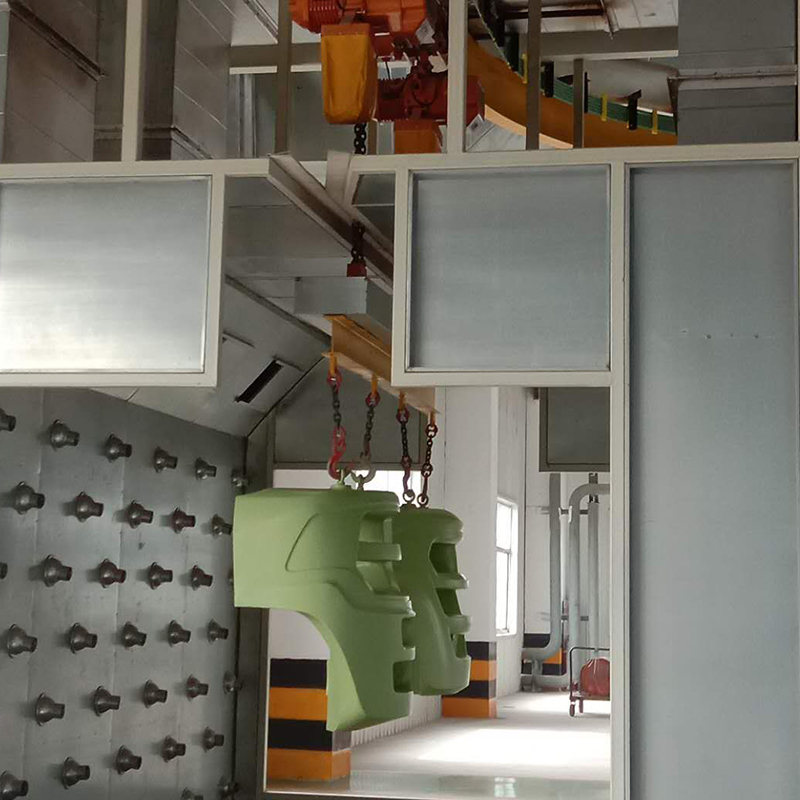

Whether a facility chooses a manual setup or a fully Auto Spraying Line depends largely on production volume, part variety, and the level of coating consistency required. An automated configuration reduces reliance on individual operator technique and tends to be better suited to high-volume, repeat-part production. Jiangsu Yue Ze Environmental Protection Equipment Co., Ltd., located in Yancheng, Jiangsu, China, spans 35,000 square meters with a registered capital of 58 million yuan and brings more than 40 years of experience in automotive counterweight spray lines, automotive body spray bake paint booths, and complete custom coating production line equipment. Since developing one of the industry's first hanging automatic painting process lines for cast counterweight blocks in 2014, the company has applied this line design experience across multiple provinces in China and international projects.

Comparing Spray Line Configurations

Frequently Asked Questions

Q1: What is the benefit of an integrated Spray Paint Line over standalone equipment?

An integrated line keeps pretreatment, spraying, and curing connected in one continuous flow, reducing waiting time between stages and helping maintain consistent process conditions across production batches.

Q2: How does spray pressure affect the performance of a paint line sprayer?

Spray pressure influences droplet size and application pattern, which in turn affects coating thickness and finish smoothness, so it needs to be calibrated to the specific paint material and part geometry being coated.

Q3: When does it make sense to upgrade to a fully Auto Spraying Line?

Facilities with high production volume, repeat part types, and a need for tight coating consistency generally benefit most from automation. Jiangsu Yue Ze Environmental Protection Equipment Co., Ltd. can help assess whether a manual or automated configuration best fits a facility's production profile.
