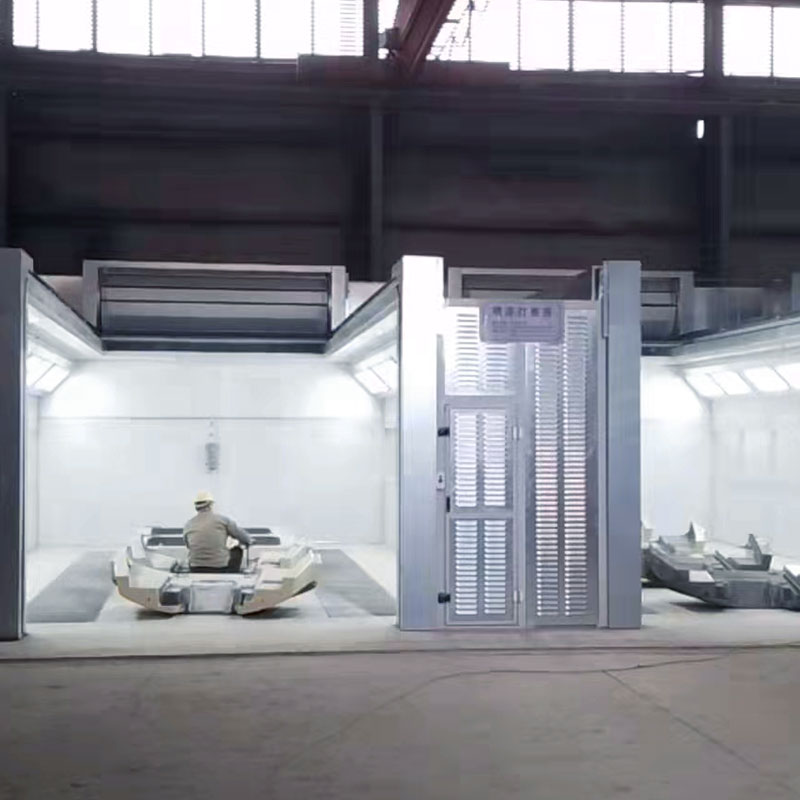

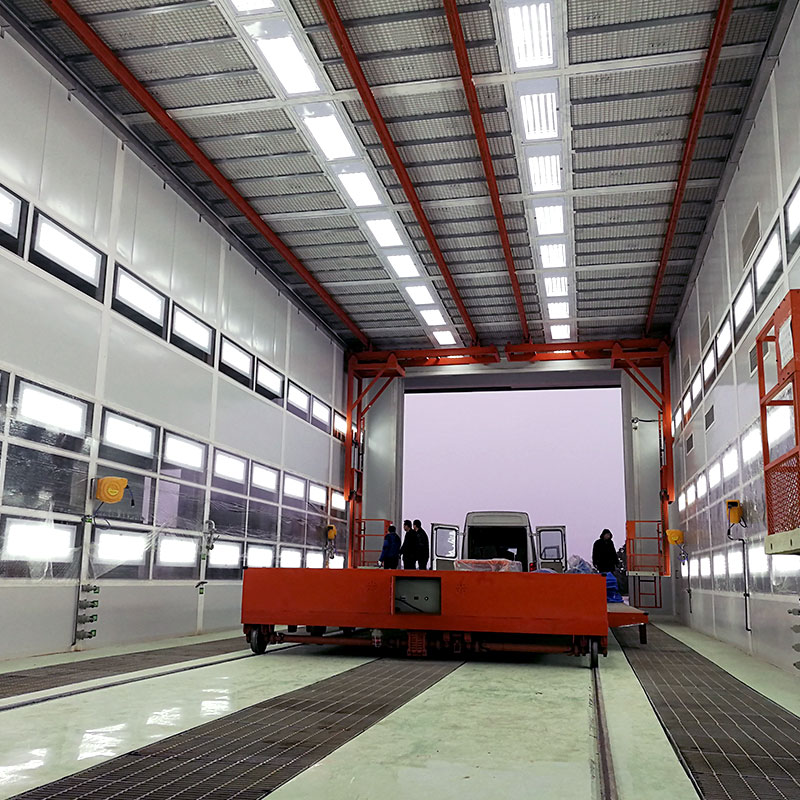

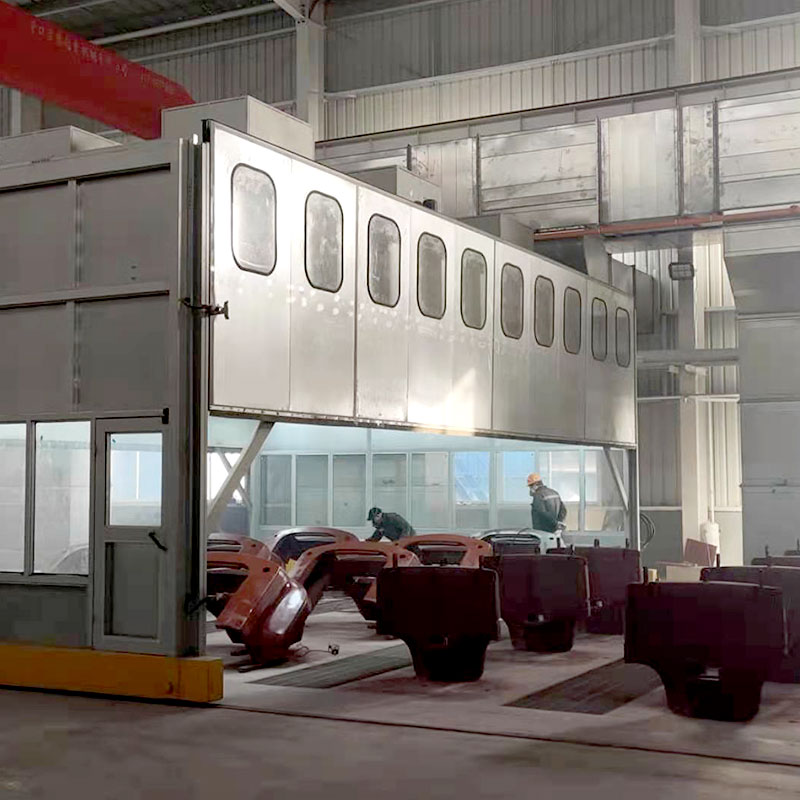

Manual Spray Booth

Key Advantages of a Manual Spray Booth

A Manual Spray Booth gives operators direct control over spray angle, distance, and coating thickness, making it well suited for parts with complex geometries, small batch runs, or frequent color changes where automated spraying would be less efficient to reconfigure. Unlike fully automated lines, a manual booth allows an operator to adjust technique in real time based on the shape and surface condition of each workpiece, which is particularly valuable for touch-up work or products that vary significantly in size. Because the booth captures overspray through a dedicated ventilation and filtration system, it also helps maintain a cleaner working environment and more consistent airflow compared with open spraying areas, reducing contamination risk on the finished coating.

For factories with lower or variable production volumes, a manual spray booth often represents a more cost-effective investment than a fully automated line, since it requires less initial capital and can be operated flexibly across different product types.

How a Manual Spray Booth Works

A manual spray booth relies on a combination of airflow control and filtration to keep the spraying environment safe and effective. The main components typically include:

1. Air intake system: draws in filtered fresh air to maintain consistent booth pressure;
2. Exhaust fan: pulls overspray and airborne particles away from the operator toward the filtration system;
3. Filter walls or water curtain: captures paint particles before exhaust air is released or recirculated;
4. Lighting system: provides even illumination so the operator can accurately judge coating coverage and finish quality.

Proper airflow balance between intake and exhaust is essential; if exhaust volume is too low, overspray can settle back onto the workpiece surface, while excessive exhaust can waste coating material and increase energy consumption.

Choosing the Right Manual Spray Booth Configuration

Booth size, airflow design, and filtration type should be matched to the size of the workpieces and the coating material being used. Jiangsu Yue Ze Environmental Protection Equipment Co., Ltd., located in Yancheng, Jiangsu, China, spans 35,000 square meters with a registered capital of 58 million yuan and brings more than 40 years of experience in paint and bake booths, large-sized parts grinding rooms, and related coating equipment. Drawing on this experience, the company designs booth configurations to fit workpieces ranging from small components to large fabricated parts, supporting projects across multiple provinces in China and international markets.

Booth Configuration Reference by Workpiece Size

Frequently Asked Questions

Q1: What types of production are best suited to a Manual Spray Booth?

A manual spray booth works well for small to medium batch production, parts with complex shapes, frequent color changes, and touch-up or repair work where automated spraying would require excessive reconfiguration.

Q2: How does filtration in a manual spray booth affect coating quality?

Effective filtration removes overspray particles from the air before they can resettle on the workpiece, helping maintain a smooth, even finish and reducing surface defects caused by airborne contamination.

Q3: Can a Manual Spray Booth be customized for specific workshop layouts?

Yes. Booth dimensions, airflow direction, and filtration systems can be adjusted to fit available workshop space and workpiece requirements. Jiangsu Yue Ze Environmental Protection Equipment Co., Ltd. offers customized booth designs based on decades of experience serving customers with varied production needs.
